Drinking water Gas Water

THREE-BOLT REPAIR CLAMP

Articolo: 088

Split sleeve clamp with three bolts for temporary repair of all types of water or gas pipes. Compatible with potable water,it is used on many types of cracks (evencross cracks) with depths of up to 80%. Itcan also be used on cross cracks with depths exceeding 80% as long as the pipingis well anchored since the clamp does notserve as locking joint. Also available with stainless nuts and bolts for higher corrosion resistance.

Visualizza materiale

Informazioni tecniche

Scheda dati
Materials
  • Ductile cast iron clamp GJS-500-7 according to UNI EN 1563, with electrostatic epoxy coating of medium thickness 250µm,nontoxic, according to UNI EN 14901,
  • Galvanised steel fixing bolts: screw M14 according to UNI EN ISO 898-1 with square below the head ref. DIN/ISO 603, nutISO 4032 (UNI 5587), washer DIN125A/ISO7089, white electrolytic protective zinccoating.
  • NBR rubber gasket, 60 shore hardness, attached to the stainless steel strip in compliance with DM174/2004 for use on potable water systems.
  • AISI 304 stainless steel strip, thickness 0.80mm.
  • Stainless steel (AISI 304) bolts on request.
Certifications
Informazioni tecniche
Technical notes
  • Repair of rigid pipelines made of steel, cast iron, fibre cement and PVC.
  • Certified for use on potable water systems according to M.D. 174 of 2004.
  • Subject to pressure testing in laboratory.
  • Application on all types of surfaces, even on rough surfaces.
Additional features
  • Operating temperature -10°C / 60°C.
More information
  • Do not expose to direct sunlight (to preserve the condition of the gasket).

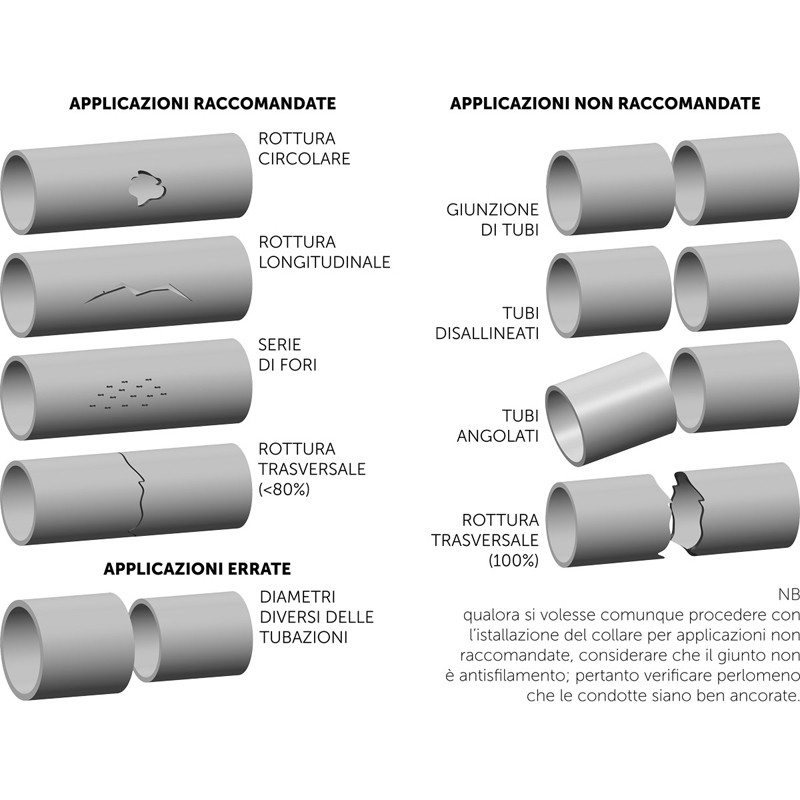

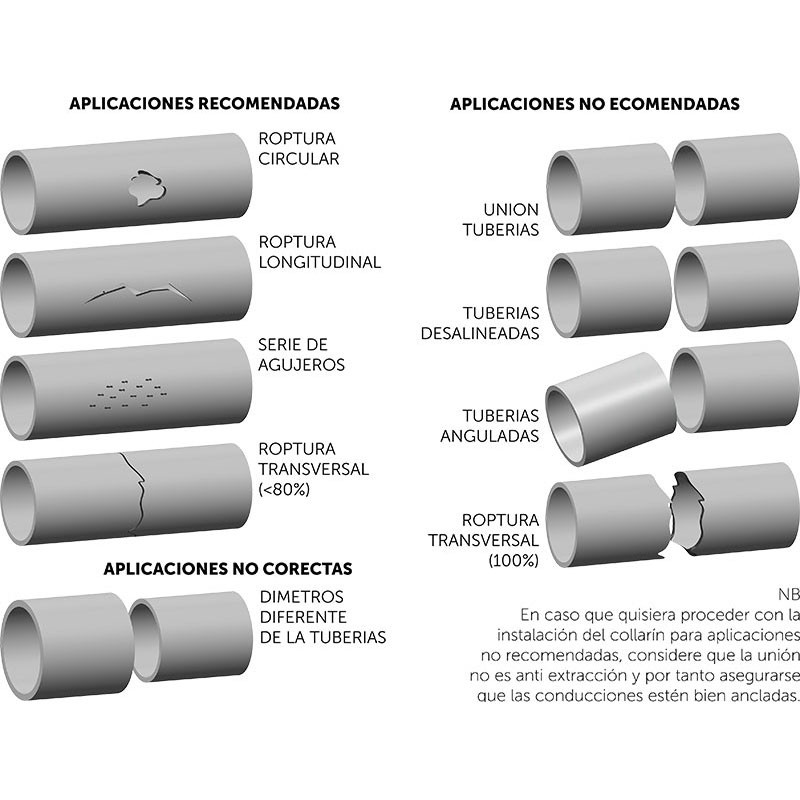

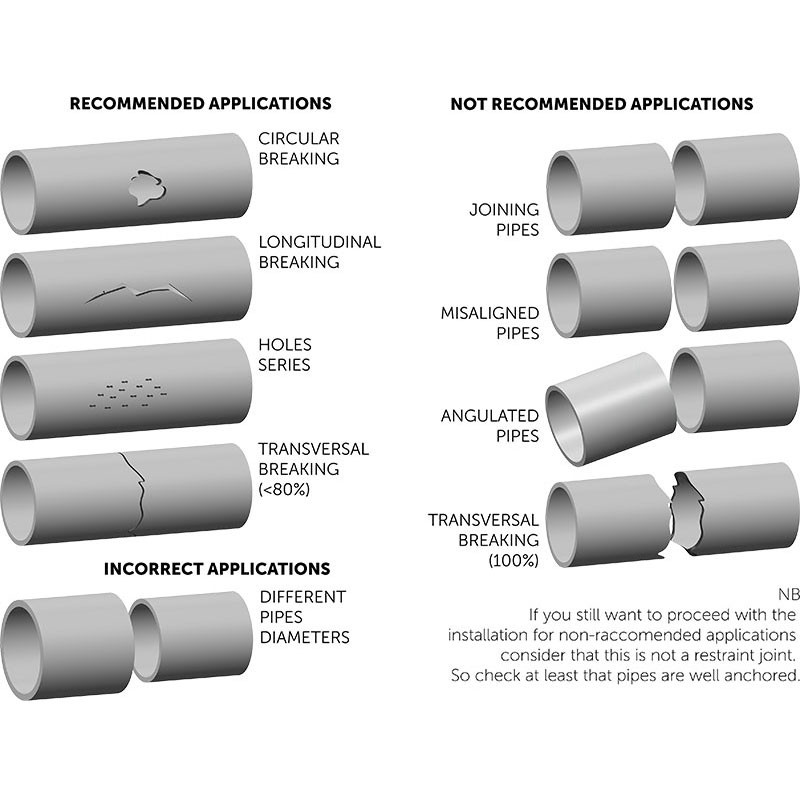

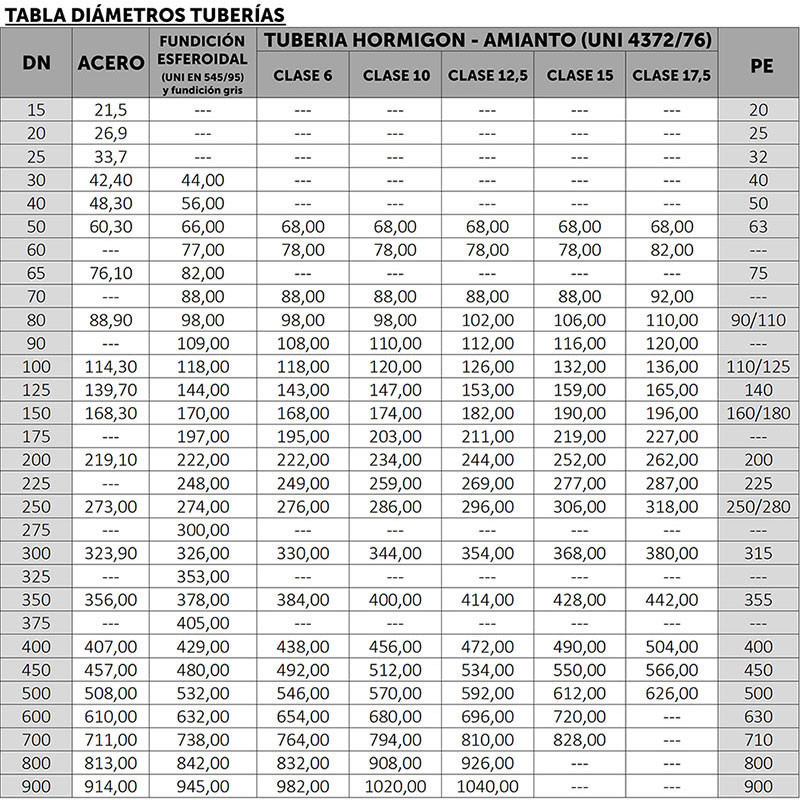

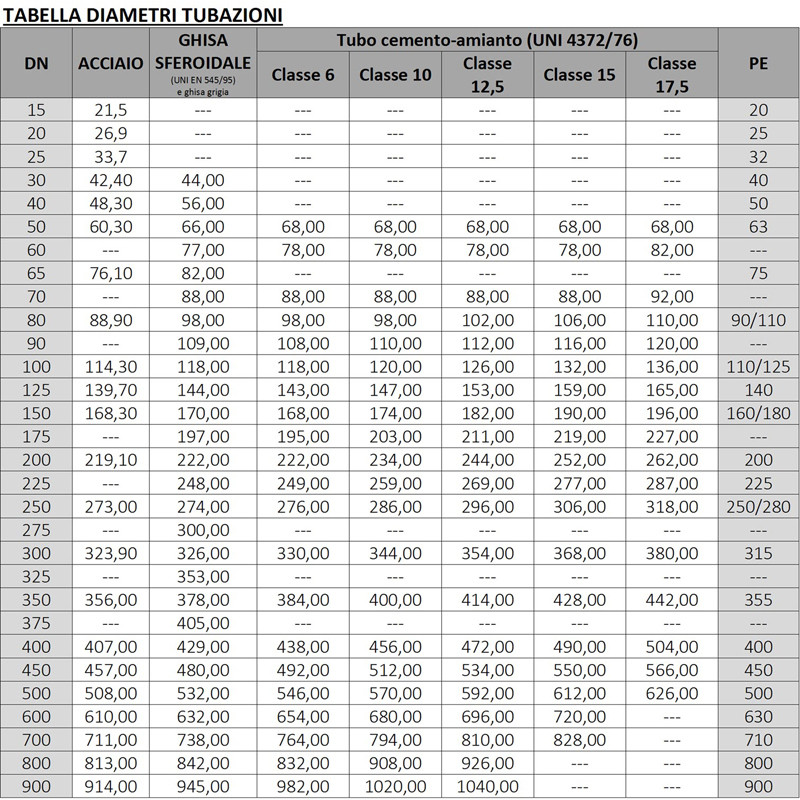

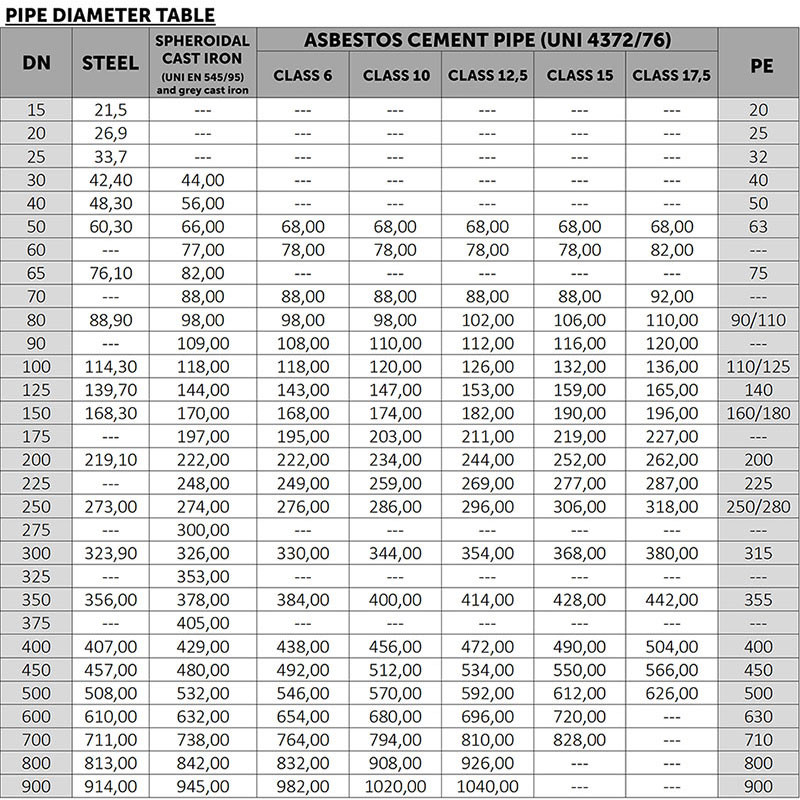

  • see the recommended applications to choose the right clamp.

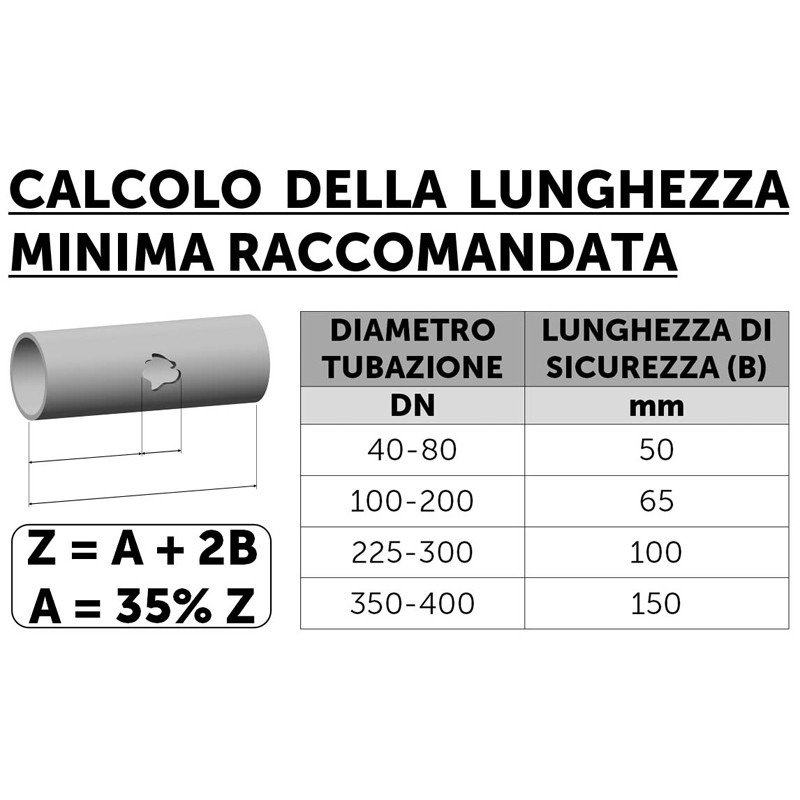

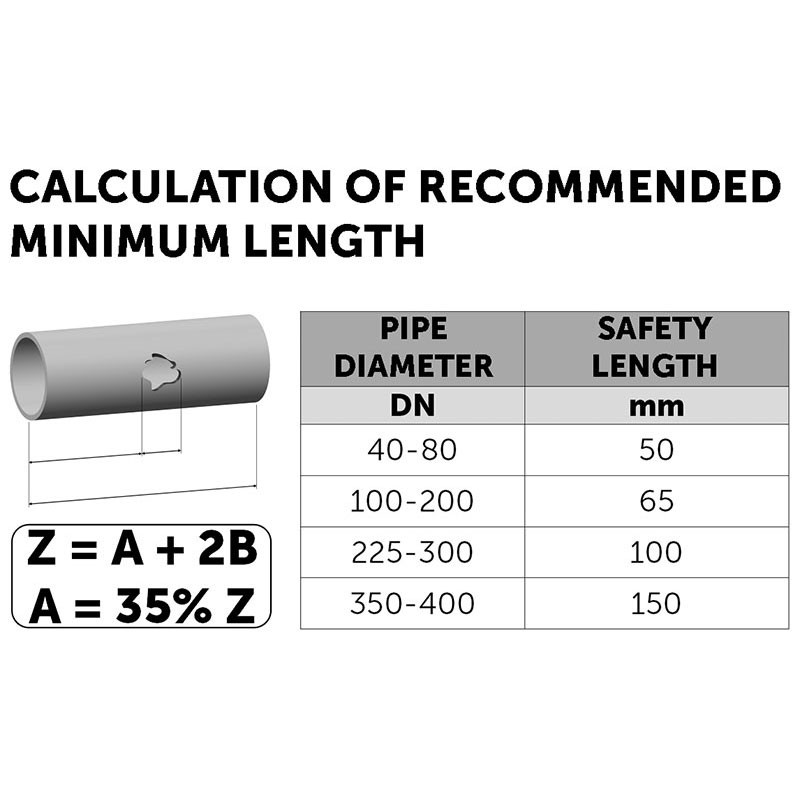

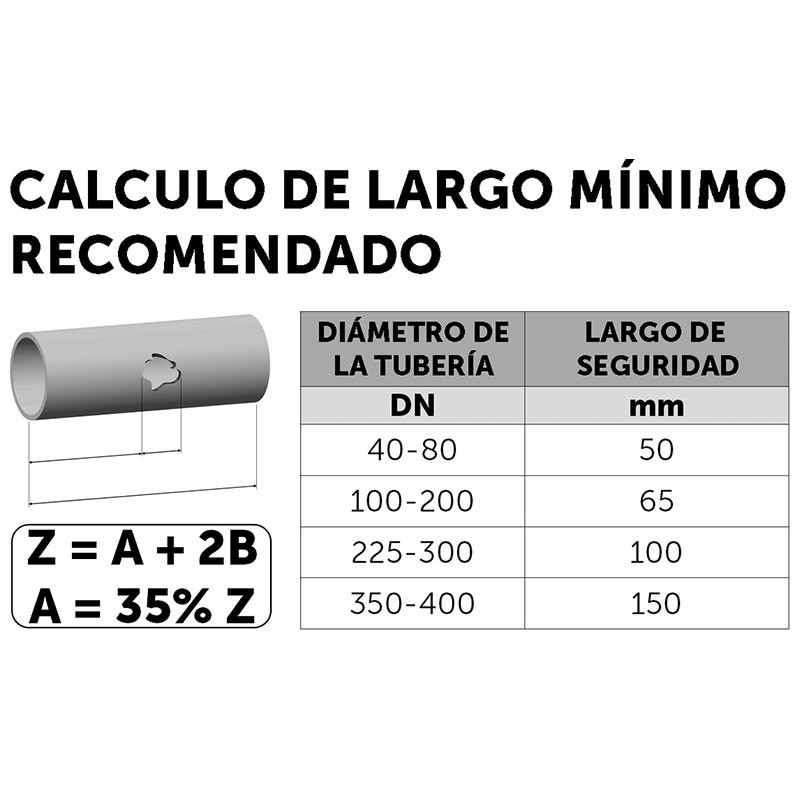

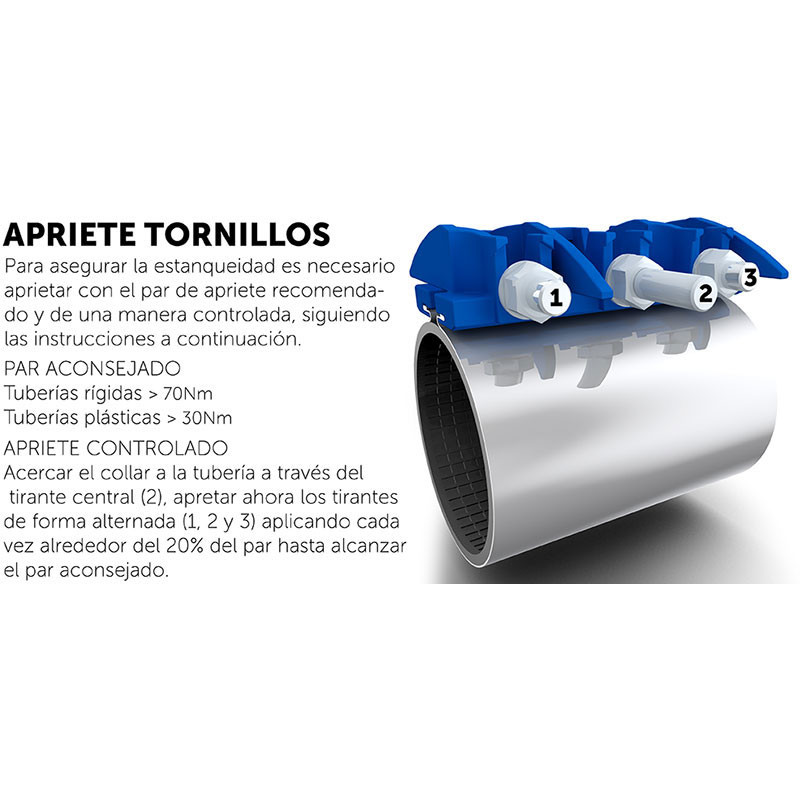

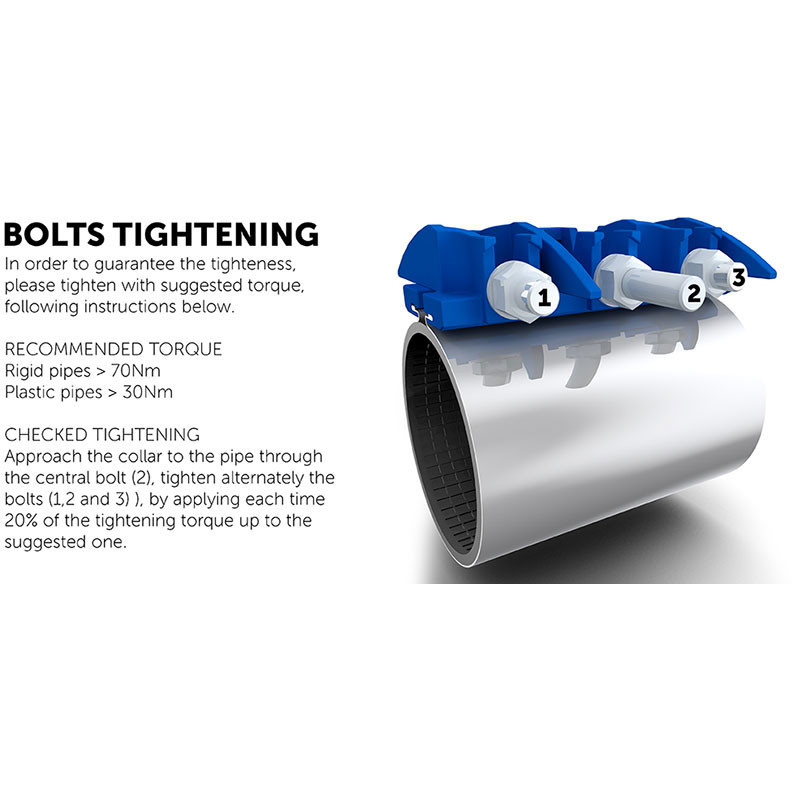

  • follow the directions provided to determine the length.
Standards

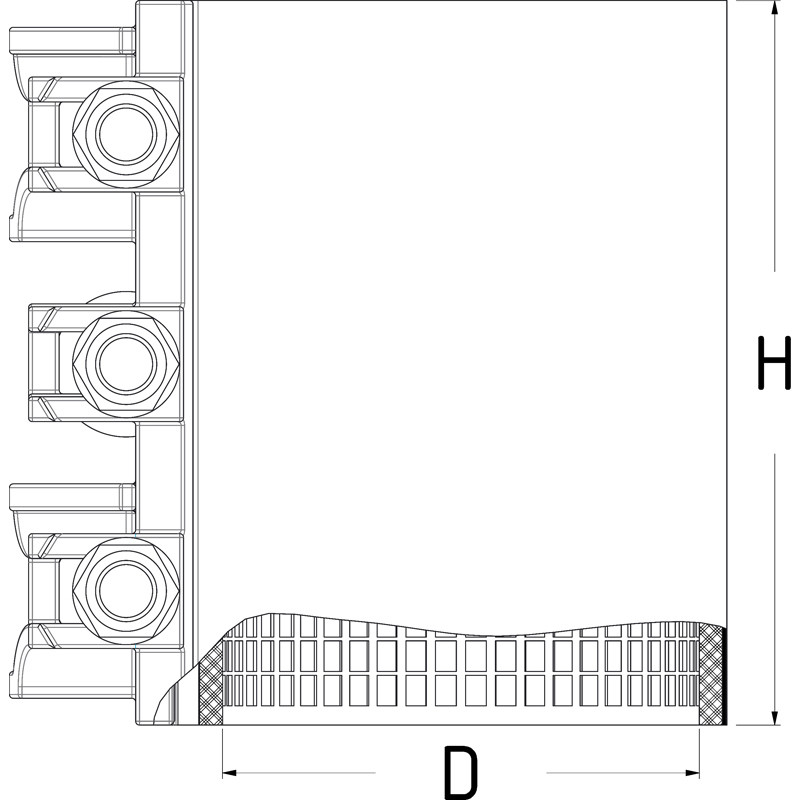

Dimensionali

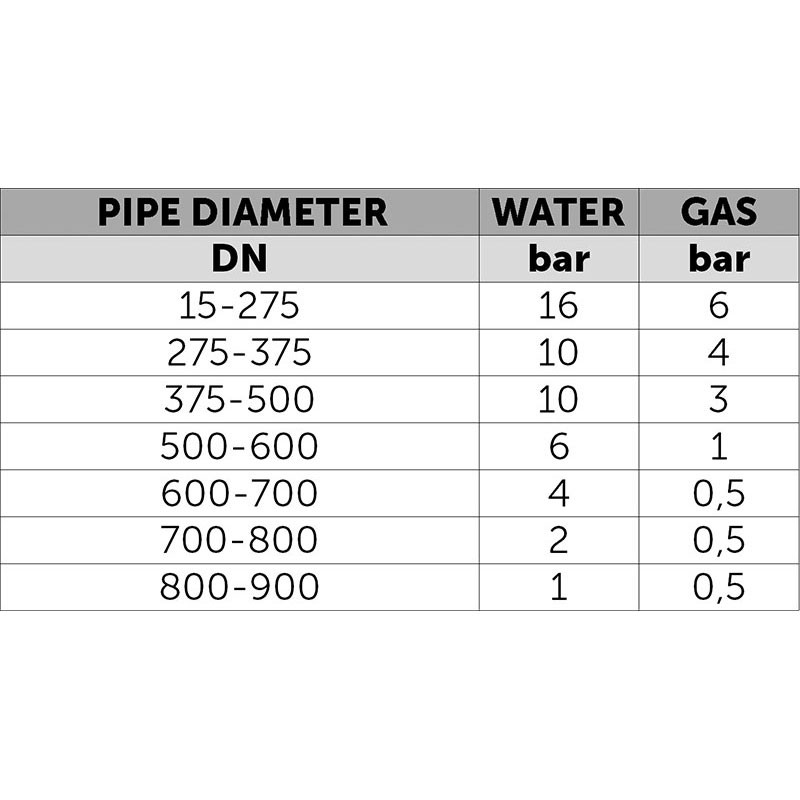

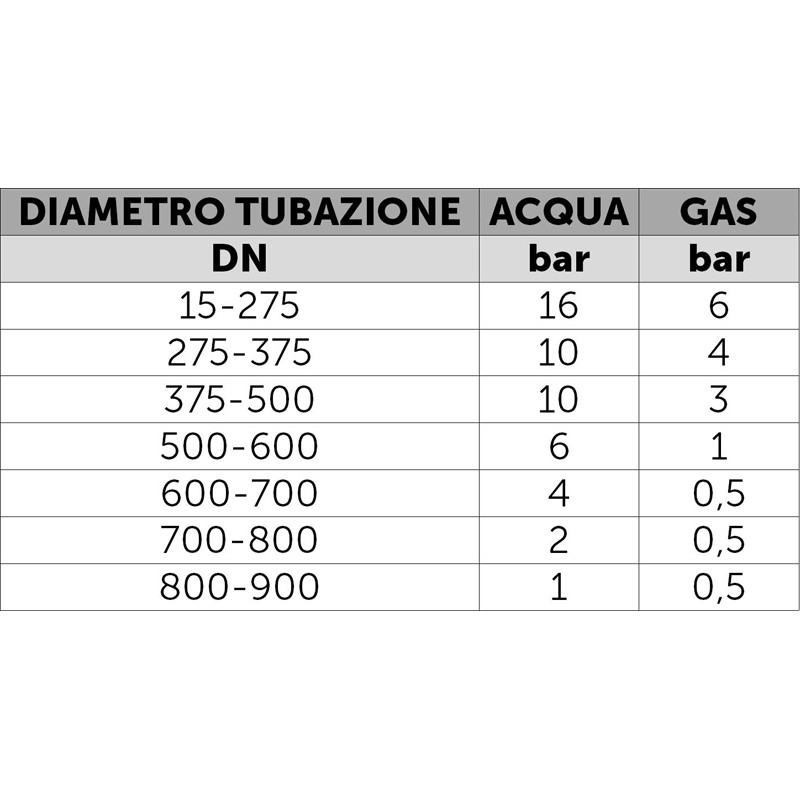

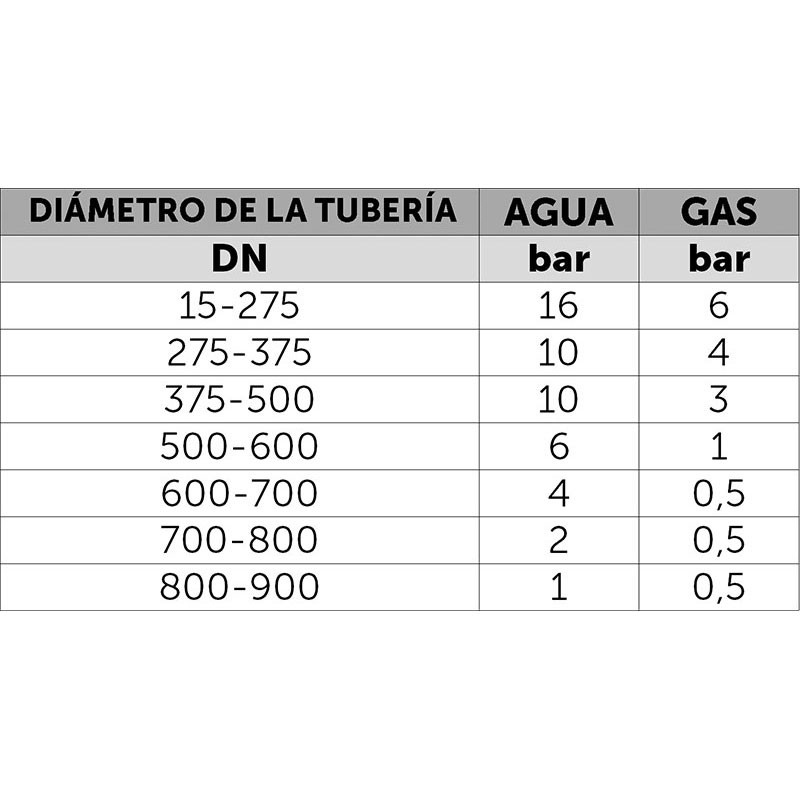

ReferenceD (mm)PNMOPHTypeWeight (kg)
088004805648/56PN 16 barMOP 6 bar200GALV. bolts3.50
088005606456/64PN 16 barMOP 6 bar200GALV. bolts3.58
088006006860/68PN 16 barMOP 6 bar200GALV. bolts3.65
088006807868/78PN 16 barMOP 6 bar200GALV. bolts3.70
088007808878/88PN 16 barMOP 6 bar200GALV. bolts3.74
088008809888/98PN 16 barMOP 6 bar200GALV. bolts3.74
088009810898/108PN 16 barMOP 6 bar200GALV. bolts3.65
0880108118108/118PN 16 barMOP 6 bar200GALV. bolts3.75
0880114126114/126PN 16 barMOP 6 bar200GALV. bolts3.80
0880126138126/138PN 16 barMOP 6 bar200GALV. bolts4.14
0880138150138/150PN 16 barMOP 6 bar200GALV. bolts4.22
0880140153140/153PN 16 barMOP 6 bar200GALV. bolts4.22
0880150162150/162PN 16 barMOP 6 bar200GALV. bolts4.38
0880162174162/174PN 16 barMOP 6 bar200GALV. bolts4.50
0880168182168/182PN 16 barMOP 6 bar200GALV. bolts4.50
0880174186174/186PN 16 barMOP 6 bar200GALV. bolts4.60
0880186198186/198PN 16 barMOP 6 bar200GALV. bolts4.65
0880198210198/210PN 16 barMOP 6 bar200GALV. bolts4.80
0880210223210/223PN 16 barMOP 6 bar200GALV. bolts4.88
0880222234222/234PN 16 barMOP 6 bar200GALV. bolts4.98
0880234246234/246PN 16 barMOP 6 bar200GALV. bolts5.12
0880243255253/255PN 16 barMOP 6 bar200GALV. bolts5.12
0880260272260/272PN 16 barMOP 6 bar200GALV. bolts5.16
0880273285273/285PN 10 barMOP 4 bar200GALV. bolts5.16
0880285297285/297PN 10 barMOP 4 bar200GALV. bolts5.20
0880298310298/310PN 10 barMOP 4 bar200GALV. bolts5.40
0880327340327/340PN 10 barMOP 4 bar200GALV. bolts6.00
0880342355342/355PN 10 barMOP 4 bar200GALV. bolts6.20
0880353365353/365PN 10 barMOP 4 bar200GALV. bolts6.20
0880368380368/380PN 10 barMOP 4 bar200GALV. bolts6.40
0880378390378/390PN 10 barMOP 3 bar200GALV. bolts6.40
088104805648/56PN 10 barMOP 4 bar200INOX bolts3.50
088105606456/64PN 10 barMOP 4 bar200INOX bolts3.58
088106006860/68PN 10 barMOP 4 bar200INOX bolts3.65
088106807868/78PN 10 barMOP 4 bar200INOX bolts3.70
088107808878/88PN 10 barMOP 4 bar200INOX bolts3.74
088108809888/98PN 10 barMOP 4 bar200INOX bolts3.74
088109810898/108PN 10 barMOP 4 bar200INOX bolts3.65
0881108118108/118PN 10 barMOP 4 bar200INOX bolts3.75
0881114126114/126PN 10 barMOP 4 bar200INOX bolts3.80
0881126138126/138PN 10 barMOP 4 bar200INOX bolts4.14
0881138150138/150PN 10 barMOP 4 bar200INOX bolts4.22
0881140153140/153PN 10 barMOP 4 bar200INOX bolts4.22
0881150162150/162PN 10 barMOP 4 bar200INOX bolts4.38
0881162174162/174PN 10 barMOP 4 bar200INOX bolts4.50
0881168182168/182PN 10 barMOP 4 bar200INOX bolts4.50
0881174186174/186PN 10 barMOP 4 bar200INOX bolts4.60
0881186198186/198PN 10 barMOP 4 bar200INOX bolts4.65
0881198210198/210PN 10 barMOP 4 bar200INOX bolts4.80
0881210223210/223PN 10 barMOP 4 bar200INOX bolts4.88
0881222234222/234PN 10 barMOP 4 bar200INOX bolts4.98
0881234246234/246PN 10 barMOP 4 bar200INOX bolts5.12
0881243255253/255PN 10 barMOP 4 bar200INOX bolts5.12
0881260272260/272PN 10 barMOP 4 bar200INOX bolts5.16
0881273285273/285PN 10 barMOP 4 bar200INOX bolts5.16
0881285297285/297PN 10 barMOP 4 bar200INOX bolts5.20
0881298310298/310PN 10 barMOP 4 bar200INOX bolts5.40
0881327340327/340PN 10 barMOP 4 bar200INOX bolts6.00
0881342355342/355PN 10 barMOP 4 bar200INOX bolts6.20
0881353365353/365PN 10 barMOP 4 bar200INOX bolts6.20
0881368380368/380PN 10 barMOP 4 bar200INOX bolts6.40
0881378390378/390PN 10 barMOP 3 bar200INOX bolts6.40
