SIMPLE TAPPING SADDLE WITH RUBBER CLAMP (STEEL, CAST IRON, CEMENT PIPELINES)
SIMPLE TAPPING SADDLE WITH RUBBER CLAMP (STEEL, CAST IRON, CEMENT PIPELINES) - Image 2
Drinking water Water

SIMPLE TAPPING SADDLE WITH RUBBER CLAMP (STEEL, CAST IRON, CEMENT PIPELINES)

Articolo: 521
PN 16 bar

Tapping saddle with rubber bends for steel, cast iron and fibre cement pipelines.It can be used permanently evenon potable water pipelines. Stainless steel nuts and bolts and thick electrostatic epoxy coating for long-term corrosion resistance.

View material

Technical information

Data sheet
Materials
  • Cover made of ductile cast iron GJS-500-7 according to UNI EN 1563, with baked electrostatic epoxy powder coating (RAL 5005), thick.250µm, nontoxic.
  • Black elastomer coated AISI 304 stainless steel strip, thickness 1.5 mm.
  • NBR rubber gasket, 60 shore hardness, attached to the stainless steel strip in compliance with DM174/2004 for use on potable water systems.
  • AISI 304 stainless steel fixing nuts, bolts and washers.
Certifications
Technical information
Standards

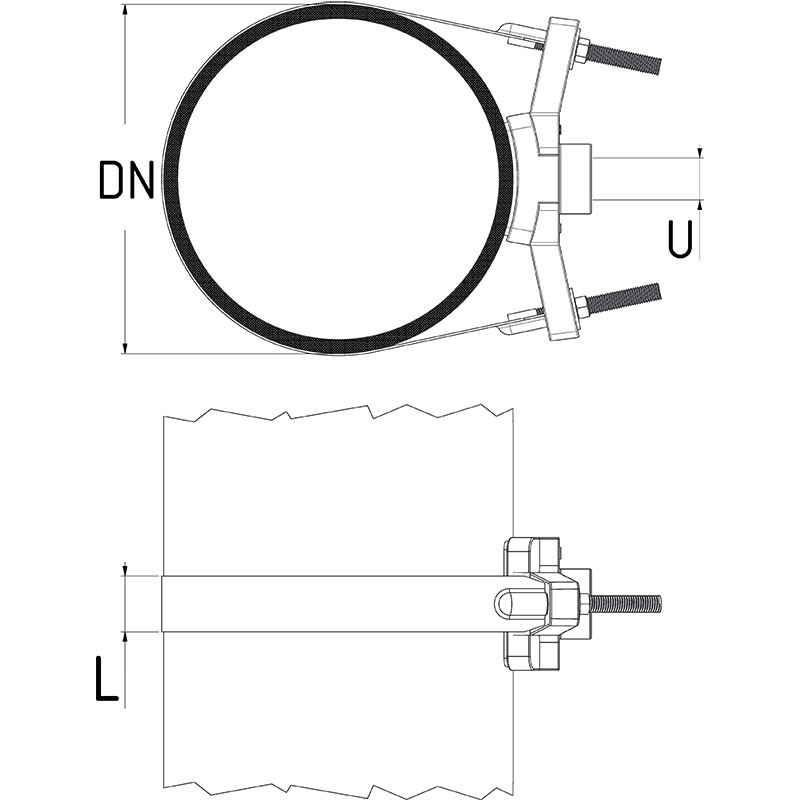

Dimensions

[table “521” not found /]
