SIMPLE TAPPING SADDLE (PE/PVC, STEEL, CAST IRON, CEMENT PIPELI
Articolo: 518
PN 16 bar
Tapping saddle for PE/PVC, steel, cast iron and fibre cement pipeline flow derivation. It can be used permanently even on potable water pipelines. Stainlesssteel nuts and bolts and thick electrostatic epoxy coating for long-term corrosion resistance.
Informazioni tecniche
Scheda dati
| Materials |
|
| Certifications |
|
Informazioni tecniche
Technical notes
- Offtake inlet for plastic pipelines (PE/PVC) and rigid pipelines (steel, cast iron, fibre cement).
- Certified for use on potable water systems according to M.D. 174 of 2004.
- Threaded offtake inlet according to UNIISO 228-1.
- Subject to pressure testing in laboratory.
- Application on all types of surfaces, even on rough surfaces.
More information
- Operating temperature -10°C / 60°C.
- Do not expose to direct sunlight (to preserve the condition of the gasket).
Standards
Dimensionali

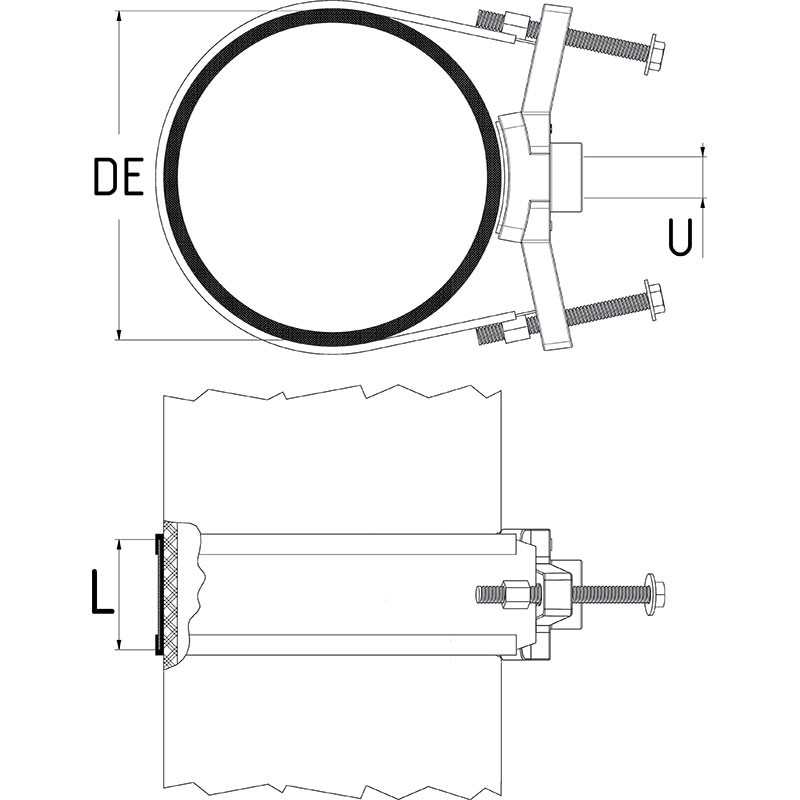

| Reference | DE (mm) | Ø (mm) | L (mm) | F | Weight (kg) |
|---|---|---|---|---|---|
| 2180020015 | 20 | 40 | 70 | Rp 1/2" | 0.03 |
| 2180025020 | 25 | 45 | 70 | Rp 3/4" | 0.03 |
| 2180032025 | 32 | 50 | 75 | Rp 1" | 0.04 |
| 2180040032 | 40 | 68 | 85 | Rp 1 1/4" | 0.07 |
| 2180050040 | 50 | 75 | 85 | Rp 1 1/2" | 0.09 |
| 2180063050 | 63 | 85 | 100 | Rp 2" | 0.18 |
| 2180075065 | 75 | 110 | 110 | Rp 2 1/2" | 0.25 |
| 2180090080 | 90 | 125 | 120 | Rp 3" | 0.40 |
| 2180110100 | 110 | 155 | 135 | R 4" | 0.60 |
| 2180125100 | 125 | 155 | 135 | R 4" | 0.67 |
