PE/STEEL WITH TEE TERMINAL FOR TAPPING TEE SADDLES – MEDIUM PRESSU
Articolo: 070
MOP 5 bar
S5 / SDR11

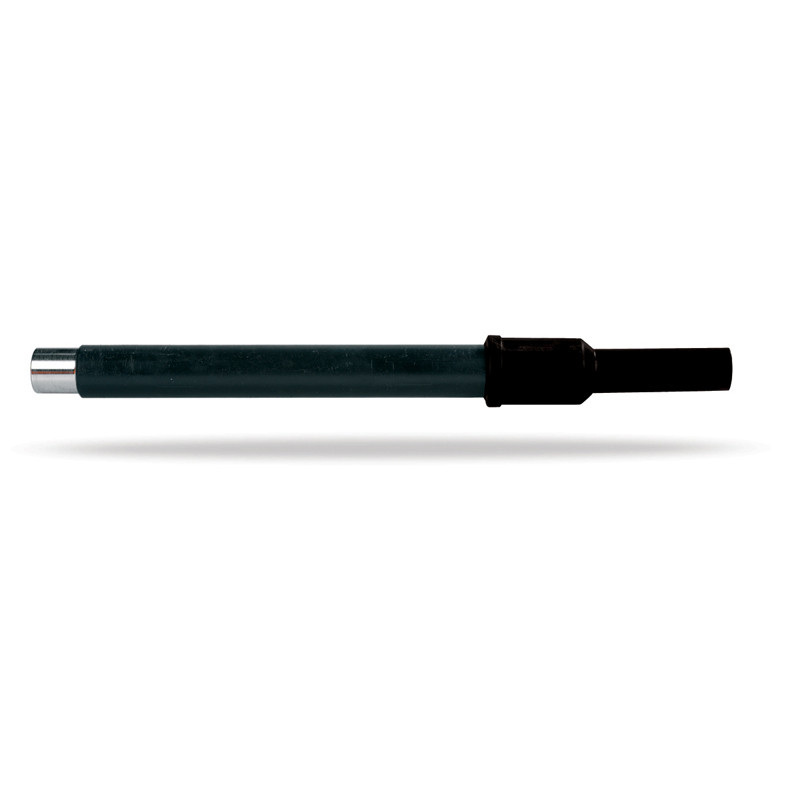

PE/steel transition fitting with TEE terminal for tapping TEE saddles. Made by injection moulding, it is used on medium pressure gas systems for type IV pipelines(up to 5bar).
Informazioni tecniche
Scheda dati
| Materials |
|
| Certifications |
|
Informazioni tecniche
Technical notes
- Metal/PE connection compliant with UNI 9736, with full bore passage and insulation against external infiltrations.
- Subject to pressure testing according to ISO 1167 and additional MACPLAST test specification.
- Polyethylene dimensions according to UNI EN 1555-3, standard thickness SDR11.
- Metal dimensions according to ISO 3183.
- M.P. welded tapping TEE
Additional features
- Fitted with internal safety o-ring.
Standards
- UNI EN 1555-3
- ISO 4437-3
- UNI EN ISO 15494
- UNI EN ISO 228-1
Dimensionali

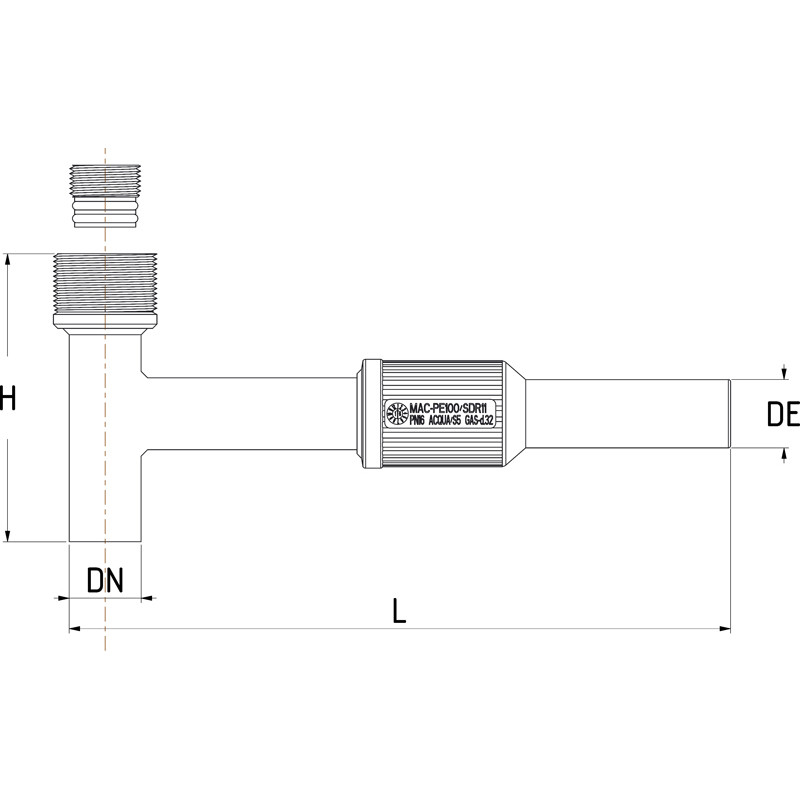

| Reference | DE (mm) | DN (inch) | DN (mm) | L (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 0700032025 | 32 | 1" | 25 | 300 | 135 | 1.10 |
| 0700040032 | 40 | 1 1/4" | 32 | 470 | 155 | 1.70 |
| 0700050040 | 50 | 1 1/2" | 40 | 480 | 155 | 1.90 |
| 0700063050 | 63 | 2" | 50 | 480 | 155 | 2.90 |
| 0700075065 | 75 | 2 1/2" | 65 | 540 | 240 | 4.50 |
| 0700090080 | 90 | 3" | 80 | 580 | 290 | 7.00 |
| 0700110100 | 110 | 4" | 100 | 585 | 290 | 10.00 |
| 0700125100 | 125 | 4" | 100 | 585 | 290 | 11.00 |
