PE/STEEL STRAIGHT WITH WELDABLE TERMINAL
Articolo: 019
PN 16 bar
S5 / SDR11
PE/steel transition fitting with weldableterminal. Made by injection moulding, itis used for connection of different materials (one of which is polyethylene) on water or fuel gas piping systems. Compatible with potable water.
Informazioni tecniche
Scheda dati
| Materials |
|
| Certifications |
|
Informazioni tecniche
Technical notes
- Metal/PE connection compliant with UNI 9736, with full bore passage and insulation against external infiltrations.
- Certified for use on potable water systems according to M.D. 174 of 2004.
- Subject to pressure testing according to ISO 1167 and additional MACPLAST test specification.
- Serves as dielectric connection according to UNI 7129, as it is triple layer coated.
- Polyethylene dimensions according to UNI EN 1555-3, standard thickness SDR11.
- Metal dimensions according to ISO 3183.

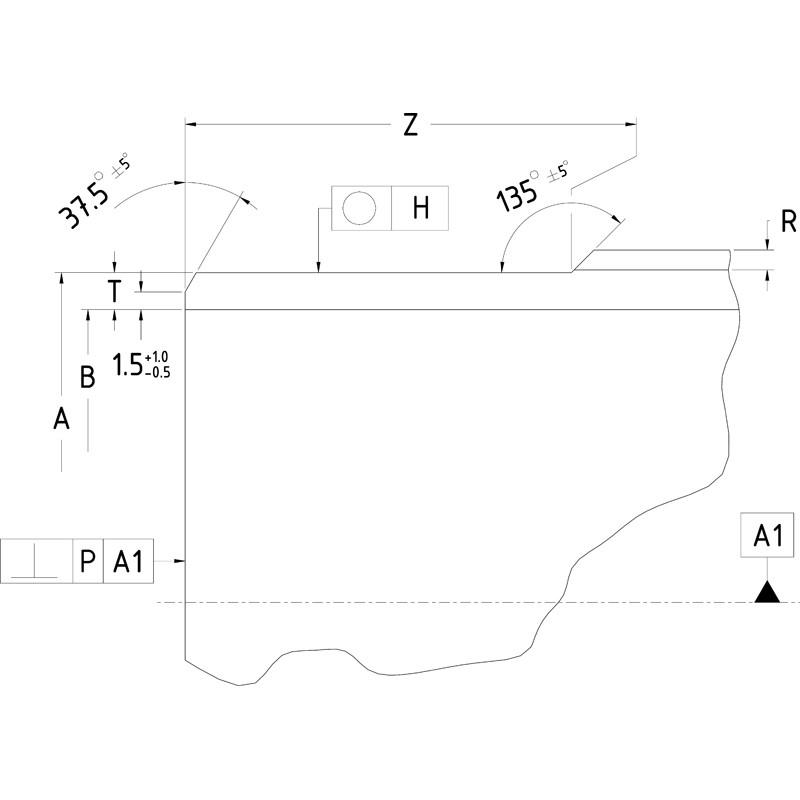

- Weld-on terminal chamfered at 37.5° degree angle according to EN 12627.
Additional features
- Fitted with internal safety o-ring.
More information
- Injection moulded fittings up to DE225 x 8″.
- Larger diameters are produced through mechanical assembly with outer sealing ring.
- S8 / SDR17 spigot on request from DE250x8″.
Standards
- UNI EN 1555-3
- UNI EN 12201-3
- ISO 4437-3
- ISO 4427-3
- UNI EN ISO 15494
- UNI EN 10226-1
Dimensionali
| Reference | DE (mm) | DN (inch) | DN (mm) | Ø (mm) | L (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 0190020015 | 20 | 1/2" | 15 | 45 | 425 | 0.45 |
| 0190025020 | 25 | 3/4" | 20 | 45 | 460 | 0.65 |
| 0190032025 | 32 | 1" | 25 | 50 | 460 | 0.95 |
| 0190040032 | 40 | 1 1/4" | 32 | 65 | 470 | 1.25 |
| 0190050040 | 50 | 1 1/2" | 40 | 70 | 480 | 1.45 |
| 0190063050 | 63 | 2" | 50 | 90 | 480 | 2.15 |
| 0190075065 | 75 | 2 1/2" | 65 | 95 | 540 | 2.95 |
| 0190090080 | 90 | 3" | 80 | 115 | 580 | 3.95 |
| 0190110080 | 110 | 3" | 80 | 150 | 580 | 4.80 |
| 0190110100 | 110 | 4" | 100 | 150 | 585 | 7.05 |
| 0190125100 | 125 | 4" | 100 | 155 | 585 | 7.30 |
| 0190140125 | 140 | 5" | 125 | 165 | 580 | 8.00 |
| 0190160150 | 160 | 6" | 150 | 210 | 610 | 10.50 |
| 0190180150 | 180 | 6" | 150 | 210 | 610 | 11.00 |
| 0190200200 | 200 | 8" | 200 | 260 | 630 | 17.50 |
| 0190225200 | 225 | 8" | 200 | 260 | 610 | 18.00 |
| 0190250200 | 250 | 8" | 200 | 265 | 630 | 22.50 |
| 0190250250 | 250 | 10" | 250 | 330 | 640 | 30.50 |
| 0190280250 | 280 | 10" | 250 | 330 | 640 | 31.00 |
| 0190315250 | 315 | 10" | 250 | 345 | 660 | 38.50 |
| 0190315300 | 315 | 12" | 300 | 370 | 725 | 46.50 |
| 0190355300 | 355 | 12" | 300 | 370 | 735 | 48.00 |
| 0190355350 | 355 | 14" | 350 | 420 | 770 | 60.00 |
| 0190400350 | 400 | 14" | 350 | 420 | 720 | 62.00 |
| 0190400400 | 400 | 16" | 400 | 470 | 770 | 83.20 |
| 0190450400 | 450 | 16" | 400 | 470 | 770 | 83.20 |
| 0190450450 | 450 | 18" | 450 | 530 | 870 | 126.50 |
| 0190450500 | 450 | 20" | 500 | 590 | 1050 | 125.00 |
| 0190500500 | 500 | 20" | 500 | 590 | 1050 | 127.50 |
| 0190500530 | 500 | 21" | 530 | 635 | 1020 | 181.50 |
| 0190560500 | 560 | 20" | 500 | 590 | 850 | 121.00 |
| 0190630530 | 630 | 21" | 530 | 665 | 1020 | 199.50 |
| 0190630600 | 630 | 24" | 600 | 735 | 1100 | 242.00 |
