PE/ STEEL STRAIGHT WITH FLANGE TERMINAL

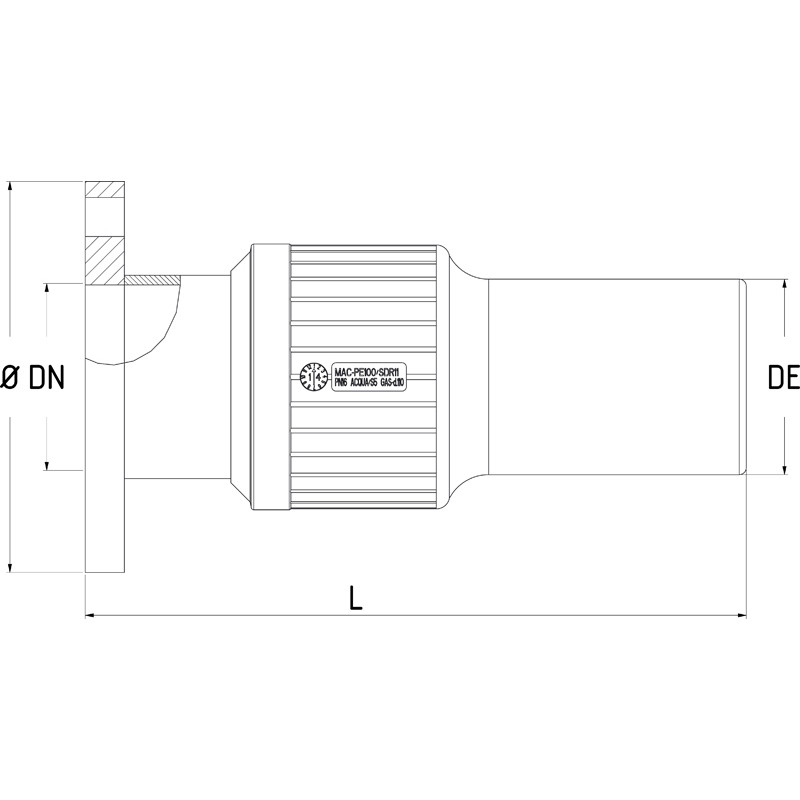

PE/ STEEL STRAIGHT WITH FLANGE TERMINAL - Image 2
Water

PE/ STEEL STRAIGHT WITH FLANGE TERMINAL

Articolo: 086
PN 16 bar SDR 11

PE/steel transition fitting with flanged terminal, according to EN 1092-1. Made byinjection moulding, it is used for connection of different materials (one of which is polyethylene) on tap water pipingsystems.

Visualizza materiale

Informazioni tecniche

Scheda dati
Materials
  • Carbon steel tubing according to ISO 3183/API 5L with white electrolytic zinc coating on the inside and on the outside.
  • High density polyethylene PE100 spigot.
  • NBR 70 Sh. A O-ring approved for gas and potable water (DVGW).
  • Powder coated S355J2H steel outer sealing ring (thick.200µm).
Certifications
Informazioni tecniche
Technical notes
  • Metal/PE connection compliant with standard UNI 9736, with full bore passage.
  • Subject to pressure testing according to ISO 1167 and additional MACPLAST test specification.
  • Polyethylene dimensions according to UNI EN 1555-3, standard thickness SDR11.
  • Metal dimensions according to ISO 3183.
  • Flanged terminal according to EN 1092-1.
Additional features
  • Fitted with internal safety o-ring.
More information
  • Injection moulded fittings up to DE225 x 8″.
  • Larger diameters are produced through mechanical assembly with outer sealing ring.
  • S8 / SDR17 spigot on request from DE250x8″.
Standards
  • UNI EN 12201-3
  • ISO 4427-3
  • EN 1092-1 / ISO 7005

Dimensionali

ReferenceD (mm)PNMOPHTypeWeight (kg)
087002102521/25PN 16 barMOP 6 bar76GALV. bolts0.24
087002603026/30PN 16 barMOP 6 bar76GALV. bolts0.24
087002903129/31PN 16 barMOP 6 bar76GALV. bolts0.30
087003203732/37PN 16 barMOP 6 bar76GALV. bolts0.30
087003804238/42PN 16 barMOP 6 bar76GALV. bolts0.32
087004204542/45PN 16 barMOP 6 bar76GALV. bolts0.32
087004404844/48PN 16 barMOP 6 bar76GALV. bolts0.34
087004805148/51PN 16 barMOP 6 bar76GALV. bolts0.34
087005005450/54PN 16 barMOP 6 bar76GALV. bolts0.34
087005506055/60PN 16 barMOP 6 bar76GALV. bolts0.36
087006006460/64PN 16 barMOP 6 bar76GALV. bolts0.38
087006506965/69PN 16 barMOP 6 bar76GALV. bolts0.40
087006907369/73PN 16 barMOP 6 bar76GALV. bolts0.45
087007107571/75PN 16 barMOP 6 bar76GALV. bolts0.52
087007608276/82PN 16 barMOP 6 bar76GALV. bolts0.54
087008208782/87PN 16 barMOP 6 bar76GALV. bolts0.56
087008709387/93PN 16 barMOP 6 bar76GALV. bolts0.56
087009410094/100PN 16 barMOP 6 bar76GALV. bolts0.58
087009910499/104PN 16 barMOP 6 bar76GALV. bolts0.60
0870105111105/111PN 16 barMOP 6 bar76GALV. bolts0.60
0870112118112/118PN 16 barMOP 6 bar76GALV. bolts0.62
0870118124118/124PN 16 barMOP 6 bar76GALV. bolts0.62
0870120126120/126PN 16 barMOP 6 bar76GALV. bolts0.62
0870126131126/131PN 16 barMOP 6 bar76GALV. bolts0.62
0870131136131/136PN 16 barMOP 6 bar76GALV. bolts0.68
0870139145139/145PN 16 barMOP 6 bar76GALV. bolts0.68
0870143149143/149PN 16 barMOP 6 bar76GALV. bolts0.68
0870149155149/155PN 16 barMOP 6 bar76GALV. bolts0.72
0870156162156/162PN 16 barMOP 6 bar76GALV. bolts0.72
0870167173167/173PN 16 barMOP 6 bar76GALV. bolts0.72
0870173179173/179PN 16 barMOP 6 bar76GALV. bolts0.72
0870198204198/204PN 16 barMOP 6 bar76GALV. bolts0.72
0870205211205/211PN 16 barMOP 6 bar76GALV. bolts0.80
0870217223217/223PN 16 barMOP 6 bar76GALV. bolts0.80
0870223229223/229PN 16 barMOP 6 bar76GALV. bolts1.00
087102102521/25PN 16 barMOP 6 bar76INOX bolts0.24
087102603026/30PN 16 barMOP 6 bar76INOX bolts0.24
087102903129/31PN 16 barMOP 6 bar76INOX bolts0.30
087103203732/37PN 16 barMOP 6 bar76INOX bolts0.30
087103804238/42PN 16 barMOP 6 bar76INOX bolts0.32
087104204542/45PN 16 barMOP 6 bar76INOX bolts0.32
087104404844/48PN 16 barMOP 6 bar76INOX bolts0.34
087104805148/51PN 16 barMOP 6 bar76INOX bolts0.34
087105005450/54PN 16 barMOP 6 bar76INOX bolts0.34
087105506055/60PN 16 barMOP 6 bar76INOX bolts0.36
087106006460/64PN 16 barMOP 6 bar76INOX bolts0.38
087106506965/69PN 16 barMOP 6 bar76INOX bolts0.40
087106907369/73PN 16 barMOP 6 bar76INOX bolts0.45
087107107571/75PN 16 barMOP 6 bar76INOX bolts0.52
087107608276/82PN 16 barMOP 6 bar76INOX bolts0.54
087108208782/87PN 16 barMOP 6 bar76INOX bolts0.56
087108709387/93PN 16 barMOP 6 bar76INOX bolts0.56
087109410094/100PN 16 barMOP 6 bar76INOX bolts0.58
087109910499/104PN 16 barMOP 6 bar76INOX bolts0.60
0871105111105/111PN 16 barMOP 6 bar76INOX bolts0.60
0871112118112/118PN 16 barMOP 6 bar76INOX bolts0.62
0871118124118/124PN 16 barMOP 6 bar76INOX bolts0.62
0871120126120/126PN 16 barMOP 6 bar76INOX bolts0.62
0871126131126/131PN 16 barMOP 6 bar76INOX bolts0.62
0871131136131/136PN 16 barMOP 6 bar76INOX bolts0.68
0871139145139/145PN 16 barMOP 6 bar76INOX bolts0.68
0871143149143/149PN 16 barMOP 6 bar76INOX bolts0.68
0871149155149/155PN 16 barMOP 6 bar76INOX bolts0.72
0871156162156/162PN 16 barMOP 6 bar76INOX bolts0.72
0871167173167/173PN 16 barMOP 6 bar76INOX bolts0.72
0871173179173/179PN 16 barMOP 6 bar76INOX bolts0.72
0871198204198/204PN 16 barMOP 6 bar76INOX bolts0.72
0871205211205/211PN 16 barMOP 6 bar76INOX bolts0.80
0871217223217/223PN 16 barMOP 6 bar76INOX bolts0.80
0871223229223/229PN 16 barMOP 6 bar76INOX bolts1.00
