PE/STEEL MALE THREADED ADAPTOR
Articolo: 215
PN 16 bar
SDR 11
PE/galvanised steel GAS male threaded transition adapter (taper). Made by injection moulding, it is used for connection ofdifferent materials (one of which is polyethylene) on tap water pipingsystems.
Informazioni tecniche
Scheda dati
| Materials |
|
| Certifications |
|
Informazioni tecniche
Technical notes
- Metal/PE connection compliant with standard UNI 9736, with full bore passage.
- Subject to pressure testing according to ISO 1167 and additional MACPLAST test specification.
- Polyethylene dimensions according to UNI EN 1555-3, standard thickness SDR11.
- PE weldable spigot for electrofusion UNI 10521 or butt welding UNI 10520.
- Tapered male thread, according to UNI EN 10226-1 (exISO7/1) with knurled seal.

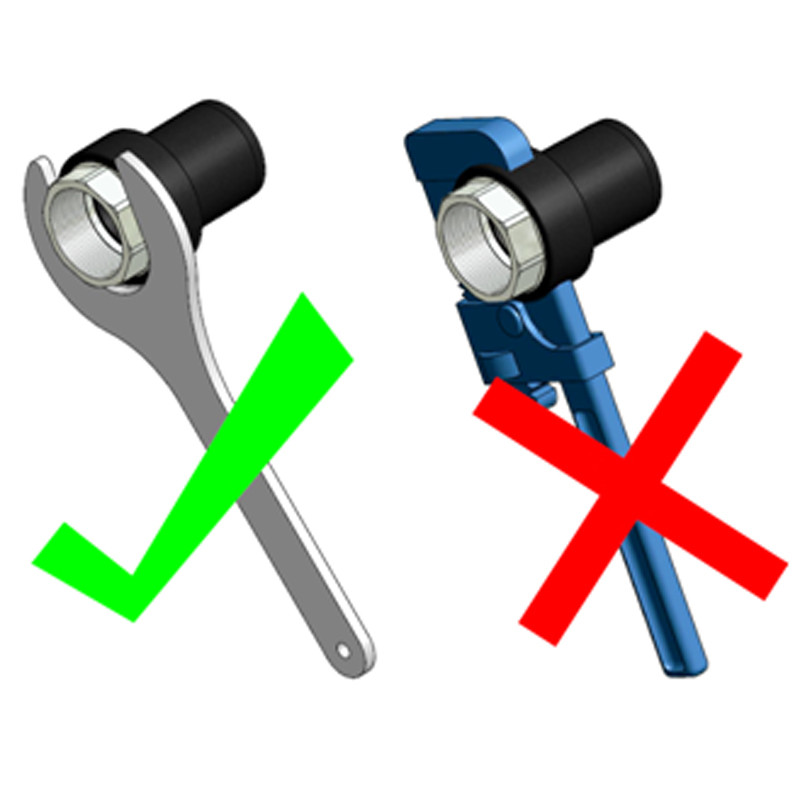

- Use a hook wrench for tightening.
Additional features
- Fitted with internal safety o-ring.
Standards
- UNI EN 12201-3
- ISO 4427-3
- UNI EN ISO 15494
- UNI EN 10226-1
Dimensionali

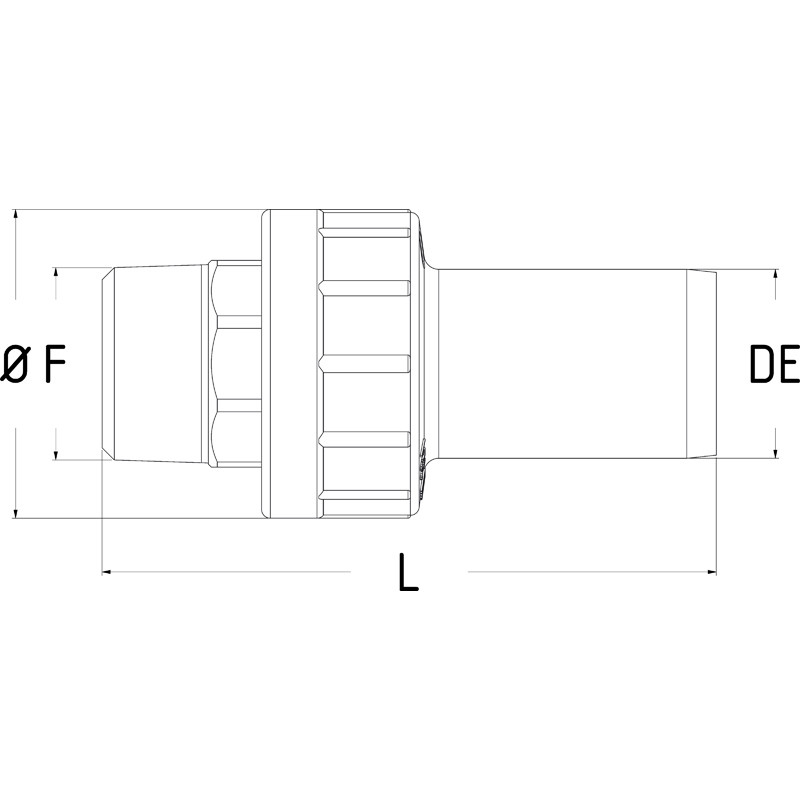

| Reference | DE (mm) | DN (inch) | DN (mm) | Ø (mm) | L (mm) | F | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 2150020015 | 20 | 1/2" | 15 | 40 | 95 | R 1/2" | 0.10 |
| 2150025020 | 25 | 3/4" | 20 | 45 | 90 | R 3/4" | 0.15 |
| 2150032025 | 32 | 1" | 25 | 55 | 105 | R 1" | 0.25 |
| 2150040032 | 40 | 1 1/4" | 32 | 68 | 120 | R 1 1/4" | 0.40 |
| 2150040040 | 40 | 1 1/2" | 40 | 75 | 120 | R 1 1/2" | 0.48 |
| 2150050040 | 50 | 1 1/2" | 40 | 75 | 125 | R 1 1/2" | 0.52 |
| 2150050050 | 50 | 2" | 50 | 85 | 130 | R 2" | 0.70 |
| 2150063040 | 63 | 1 1/2" | 40 | 85 | 135 | R 1 1/2" | 0.62 |
| 2150063050 | 63 | 2" | 50 | 85 | 140 | R 2" | 0.73 |
| 2150075050 | 75 | 2" | 50 | 110 | 145 | R 2" | 0.80 |
| 2150075065 | 75 | 2 1/2" | 65 | 110 | 155 | R 2 1/2" | 1.20 |
| 2150090080 | 90 | 3" | 80 | 125 | 170 | R 3" | 1.60 |
| 2150110100 | 110 | 4" | 100 | 155 | 200 | R 4" | 2.90 |
| 2150125100 | 125 | 4" | 100 | 155 | 200 | R 4" | 2.90 |
