PE/BRASS FEMALE THREADED UNION
Articolo: 010
PN 16 bar
SDR 11
PE/brass GAS female threaded transition adapter. Made by assembling different removable components, it is used for connection of different materials (one of which is polyethylene) on potable water piping systems.
Informazioni tecniche
Scheda dati
| Materials |
|
| Certifications |
|
Informazioni tecniche
Technical notes
- Polyethylene dimensions according to UNI EN 1555-3, standard thickness SDR11.
- Certified for use on potable water systems according to M.D. 174 of 2004.
- Subject to pressure testing according to ISO 1167 and additional MACPLAST test specification.
- PE weldable spigot for electrofusion UNI 10521 or butt welding UNI 10520.
- Cylindrical female thread, according toUNI EN 10226-1 (exISO7/1).
- Use a hook wrench for tightening.
More information
- ADZ-USA CW511L brass on request
Standards
- UNI EN 12201-3
- ISO 4427-3
- UNI EN ISO 15494
- UNI EN 10226-1

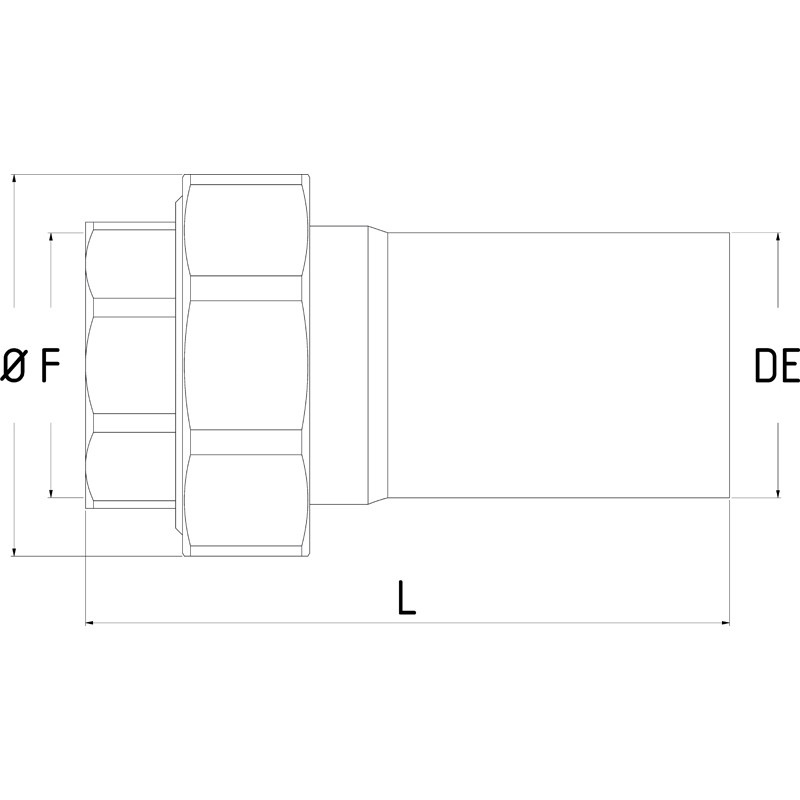

Dimensionali
| Reference | DE (mm) | DN (inch) | DN (mm) | Ø (mm) | L (mm) | F | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 0100025020 | 25 | 3/4" | 47 | 82 | R 3/4" | 0.23 | |
| 0100032025 | 32 | 1" | 53 | 94 | R 1" | 0.28 | |
| 0100040032 | 40 | 1 1/4” | 66 | 102 | R 1 1/4” | 0.45 | |
| 0100050040 | 50 | 1 1/2" | 40 | 72 | 113 | Rp 1 1/2" | 0.61 |
| 0100063050 | 63 | 2" | 50 | 89 | 126 | Rp 2" | 1.07 |
| 0100075065 | 75 | 2 1/2" | 65 | 109 | 179 | Rp 2 1/2" | 1.67 |
| 0100090080 | 90 | 3" | 80 | 123 | 205 | Rp 3" | 2.29 |
| 0100110100 | 110 | 4" | 100 | 150 | 219 | R 4" | 3.1 |
| 0100125100 | 125 | 4" | 100 | 150 | 233 | R 4" | 3.56 |
