DOUBLE BAND REPAIR CLAMP WITH FIVE BOLTS

Articolo: 130

Double band clamp with five bolts for temporary repair of all types of water or gas pipes. Compatible with potable water, it is used on different types of cracks (even cross cracks) with depths of up to 80%. It can also be used on cross cracks with depths exceeding 80% as long as the piping is well anchored since the clamp does not serve as locking joint. Also available with stainless steel nuts and bolts for higher corrosion resistance.

Visualizza materiale

Informazioni tecniche

Scheda dati
Materials
  • Ductile cast iron clamp GJS-500-7 according to UNI EN 1563, with electrostatic epoxy coating of medium thickness 250µm,nontoxic, according to ISO 14901,
  • Galvanised steel fixing bolts: screw M14 according to UNI EN ISO 898-1 with square below the head ref. DIN/ISO 603, nutISO 4032 (UNI 5587), washer DIN125A/ISO7089, white electrolytic protective zinccoating.
  • NBR rubber gasket, 60 shore hardness, attached to the stainless steel strip in compliance with DM174/2004 for use on potable water systems.
  • AISI 304 stainless steel strip, thickness 0.80mm.
  • Stainless steel (AISI 304) bolts on request.
Certifications
Informazioni tecniche
Technical notes
  • Repair of rigid pipelines made of steel, cast iron, fibre cement and PVC.
  • Certified for use on potable water systems according to M.D. 174 of 2004.
  • Subject to pressure testing in laboratory.
  • Application on all types of surfaces, even on rough surfaces.
Additional features
  • Operating temperature -10°C / 60°C.
More information
  • Do not expose to direct sunlight (to preserve the condition of the gasket).

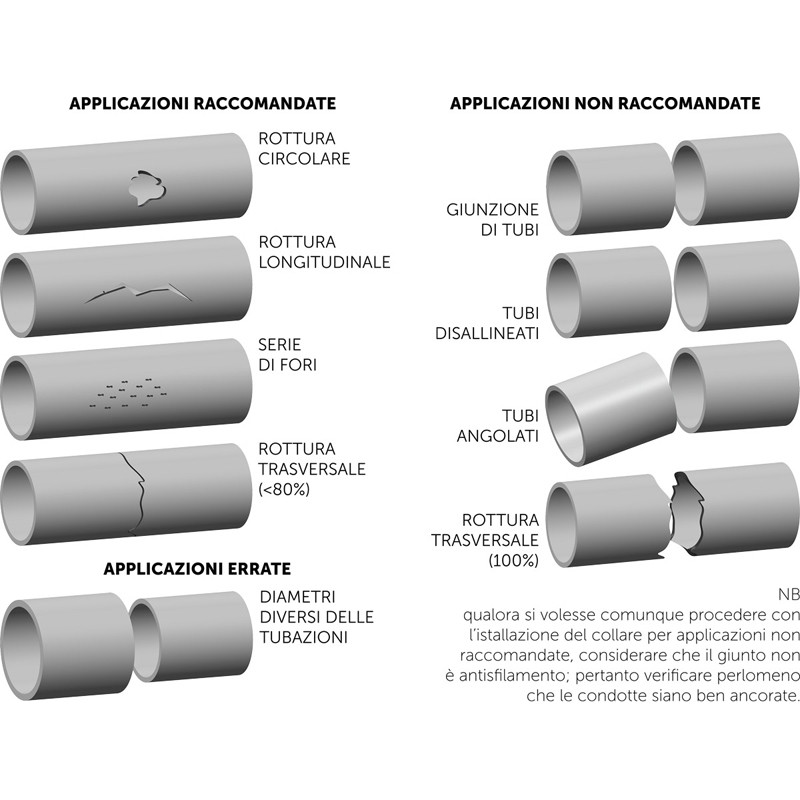

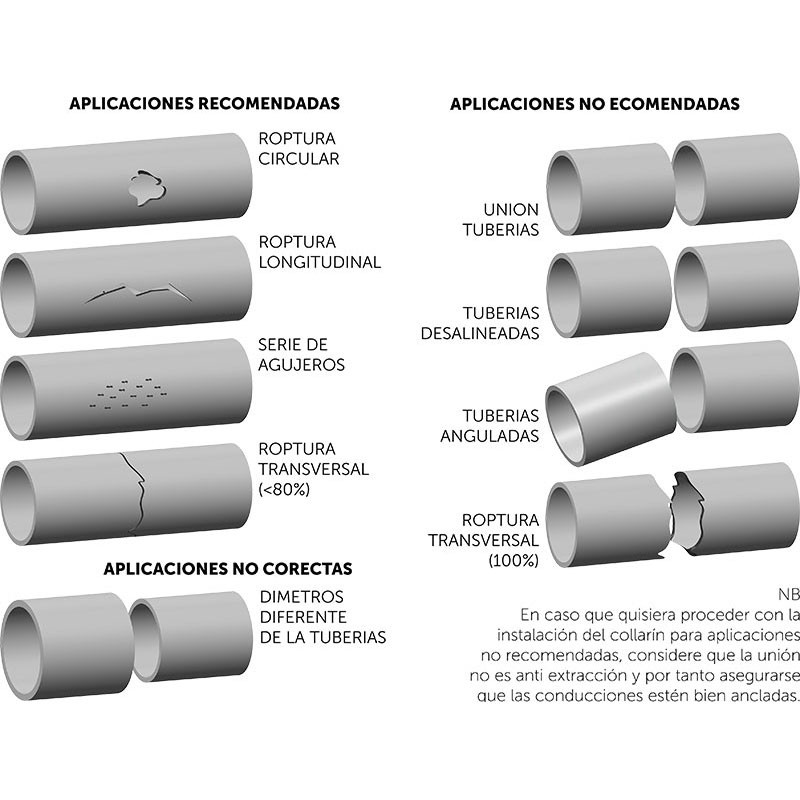

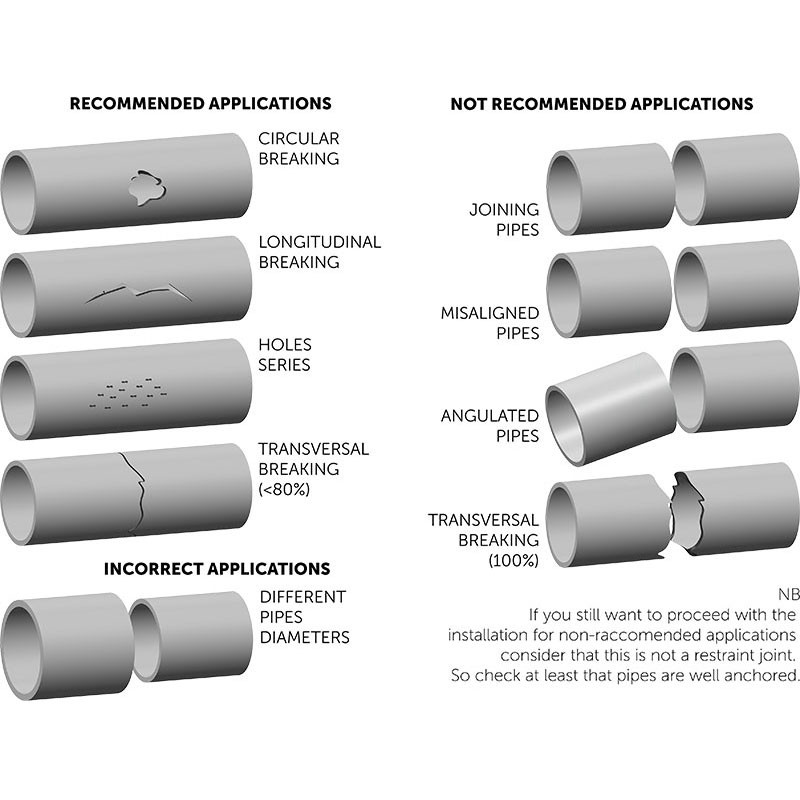

  • see the recommended applications to choose the right clamp.

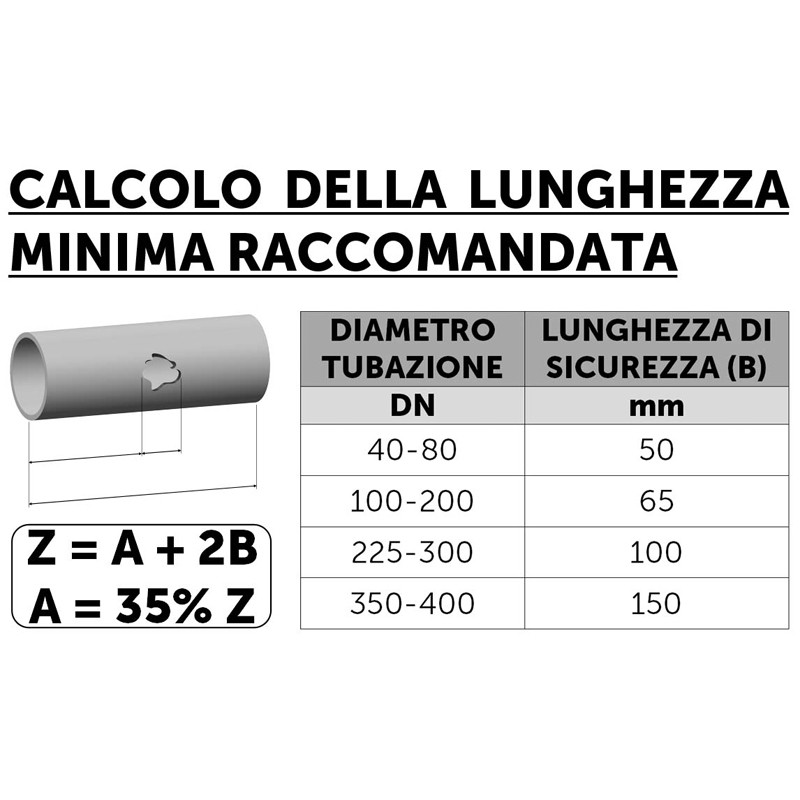

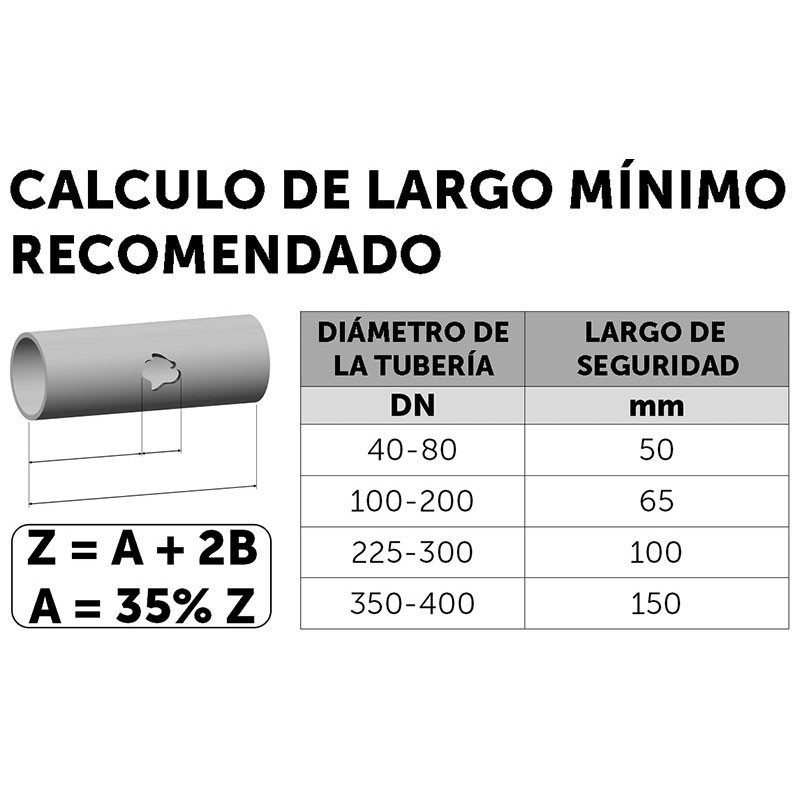

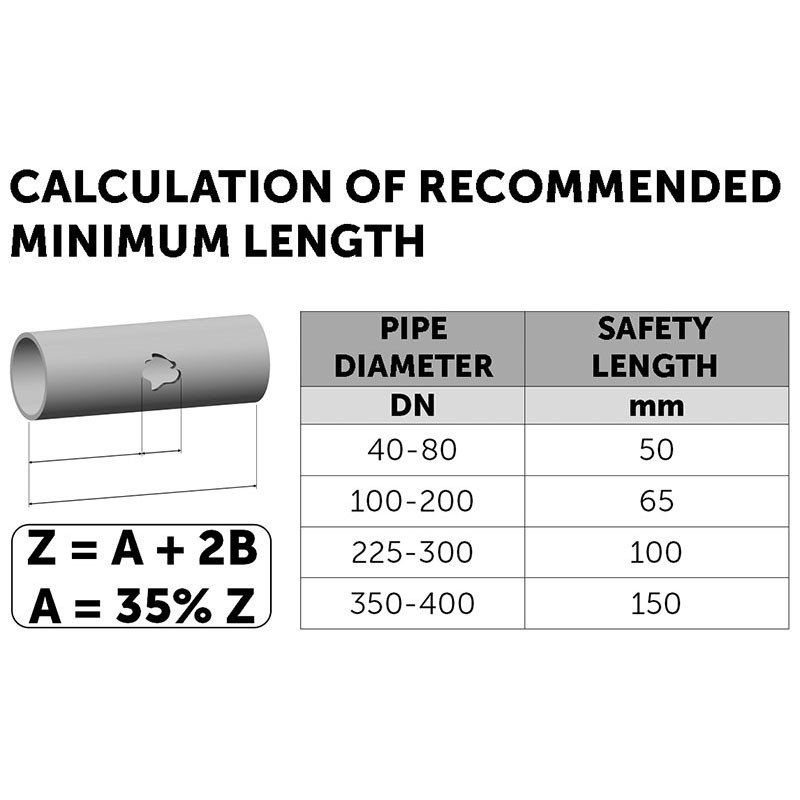

  • follow the directions provided to determine the length.
Standards

Dimensionali

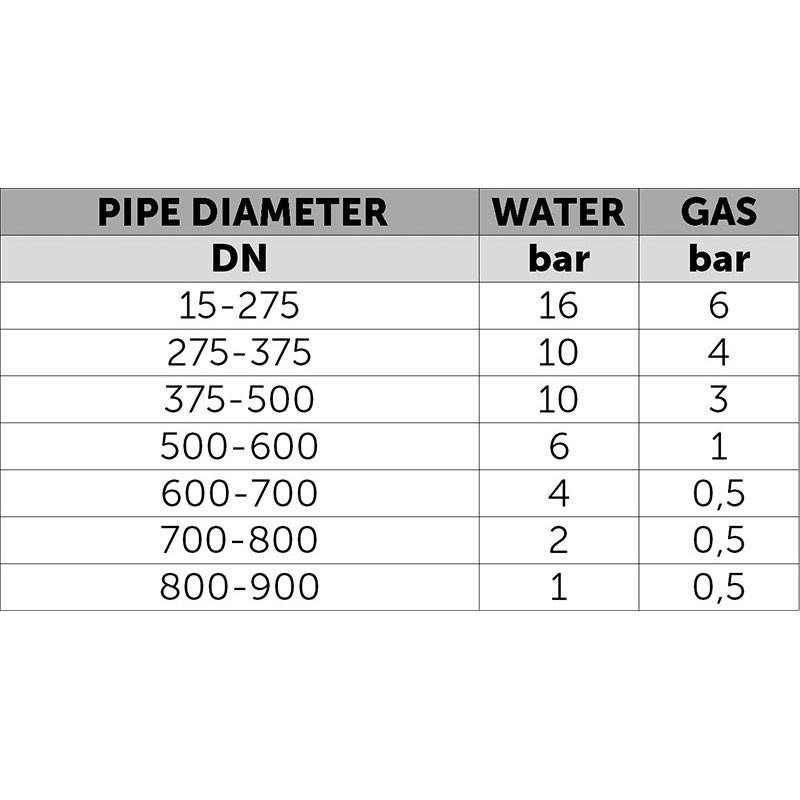

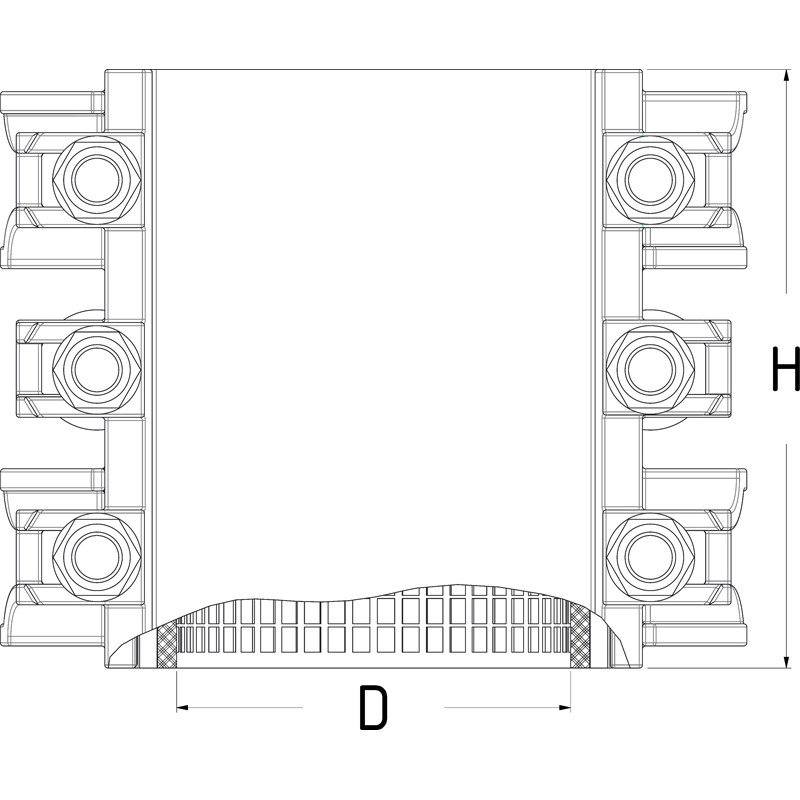

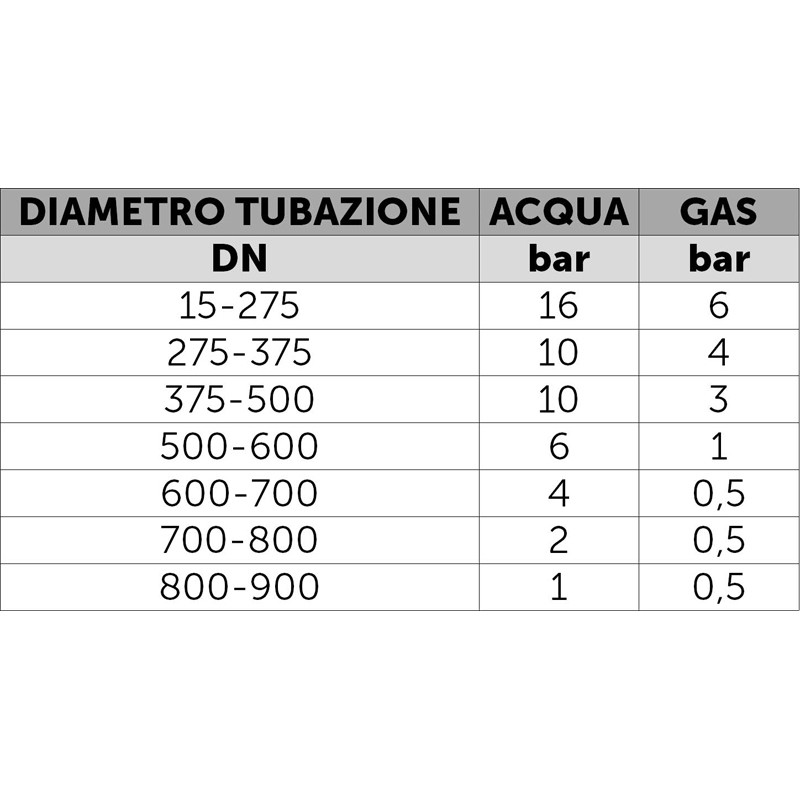

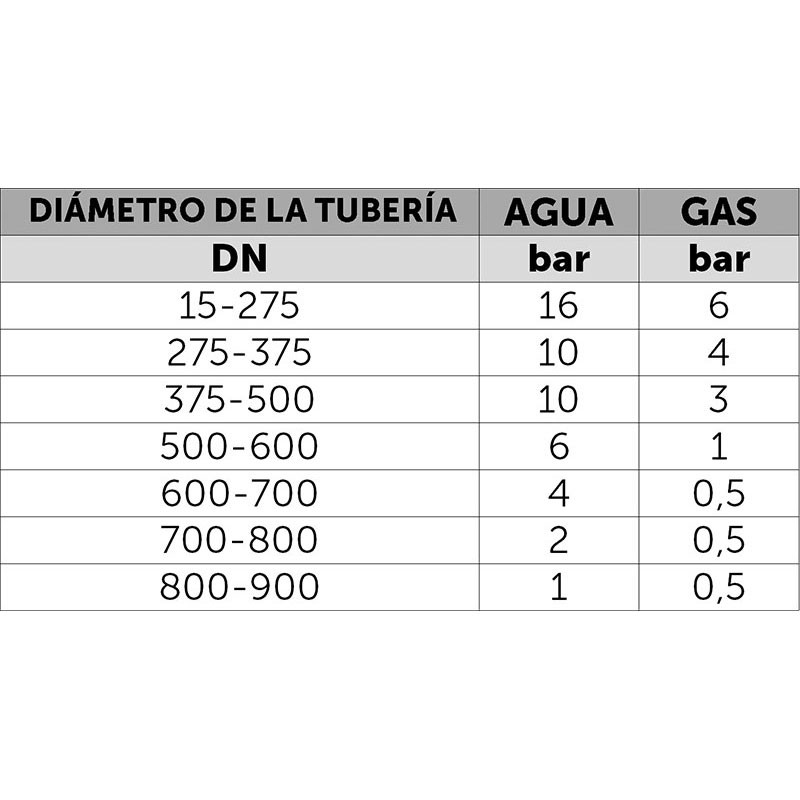

ReferenceD (mm)PNMOPHTypeWeight (kg)
130008811088/110PN 16 barMOP 6 bar300GALV. bolts10.53
1300108128108/128PN 16 barMOP 6 bar300GALV. bolts10.68
1300114137114/137PN 16 barMOP 6 bar300GALV. bolts10.78
1300138160138/160PN 16 barMOP 6 bar300GALV. bolts11.00
1300160182160/182PN 16 barMOP 6 bar300GALV. bolts11.25
1300182202182/202PN 16 barMOP 6 bar300GALV. bolts11.50
1300202224202/224PN 16 barMOP 6 bar300GALV. bolts11.65
1300217240217/240PN 16 barMOP 6 bar300GALV. bolts11.78
1300240262240/262PN 16 barMOP 6 bar300GALV. bolts12.13
1300262284262/284PN 10 barMOP 4 bar300GALV. bolts12.33
1300273296273/296PN 10 barMOP 4 bar300GALV. bolts12.68
1300296319296/319PN 10 barMOP 4 bar300GALV. bolts13.13
1300324346324/346PN 10 barMOP 4 bar300GALV. bolts14.13
1300346368346/368PN 10 barMOP 4 bar300GALV. bolts14.53
1300365387365/387PN 10 barMOP 3 bar300GALV. bolts14.68
1300387410387/410PN 10 barMOP 3 bar300GALV. bolts15.08
1300410432410/432PN 10 barMOP 3 bar300GALV. bolts15.38
1300428450428/450PN 10 barMOP 3 bar300GALV. bolts15.68
1300450474450/474PN 10 barMOP 3 bar300GALV. bolts16.20
1300470492470/492PN 10 barMOP 3 bar300GALV. bolts16.40
1300492516492/516PN 6 barMOP 1 bar300GALV. bolts16.78
130108811088/110PN 16 barMOP 6 bar300INOX bolts10.53
1301108128108/128PN 16 barMOP 6 bar300INOX bolts10.68
1301114137114/137PN 16 barMOP 6 bar300INOX bolts10.78
1301138160138/160PN 16 barMOP 6 bar300INOX bolts11.00
1301160182160/182PN 16 barMOP 6 bar300INOX bolts11.25
1301182202182/202PN 16 barMOP 6 bar300INOX bolts11.50
1301202224202/224PN 16 barMOP 6 bar300INOX bolts11.65
1301217240217/240PN 16 barMOP 6 bar300INOX bolts11.78
1301240262240/262PN 16 barMOP 6 bar300INOX bolts12.13
1301262284262/284PN 10 barMOP 4 bar300INOX bolts12.33
1301273296273/296PN 10 barMOP 4 bar300INOX bolts12.68
1301296319296/319PN 10 barMOP 4 bar300INOX bolts13.13
1301324346324/346PN 10 barMOP 4 bar300INOX bolts14.13
1301346368346/368PN 10 barMOP 4 bar300INOX bolts14.53
1301365387365/387PN 10 barMOP 3 bar300INOX bolts14.68
1301387410387/410PN 10 barMOP 3 bar300INOX bolts15.08
1301410432410/432PN 10 barMOP 3 bar300INOX bolts15.38
1301428450428/450PN 10 barMOP 3 bar300INOX bolts15.68
1301450474450/474PN 10 barMOP 3 bar300INOX bolts16.20
1301470492470/492PN 10 barMOP 3 bar300INOX bolts16.40
1301492516492/516PN 6 barMOP 1 bar300INOX bolts16.78
