CROSS

Articolo: 066

High density polyethylene cross, formed byassembling and welding several parts together. For use on water distribution systems or for industrial applications. Compatible with potable water.

Visualizza materiale

Informazioni tecniche

Scheda dati
Materials
  • High density polyethylene PE100 pipe.
Certifications
Informazioni tecniche
Technical notes
  • Pipeline dimensions according to UNI EN12201-2.
  • Butt welding according to UNI 10520 andUNI 10967.
  • Welding machines in compliance with UNI10565.
  • Qualified welders according to UNI 9737.
More information
  • Black pipelines with blue co-extrusionsfor water and yellow co-extrusions for gas.
Standards
  • UNI EN 1555-3
  • ISO 4437-3
  • UNI EN 12201-3
  • ISO 4427-3
  • UNI EN ISO 15494

Dimensionali

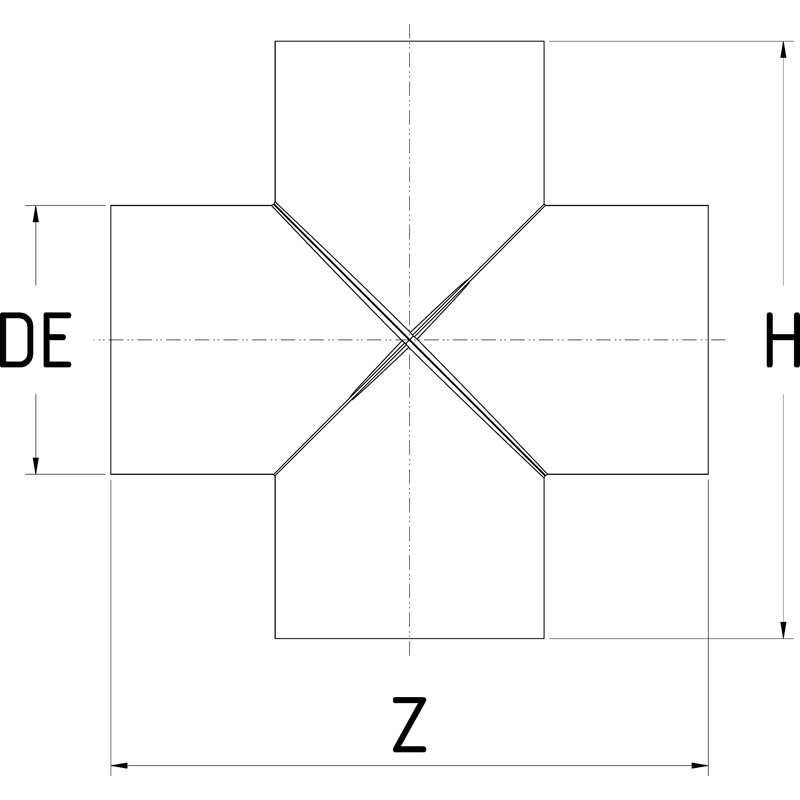

ReferenceDE (mm)PNSDRH (mm)Z (mm)Weight (kg)
0662000160160PN 6 barSDR 264604603.05
0662000180180PN 6 barSDR 265805804.32
0662000200200PN 6 barSDR 266006005.64
0662000225225PN 6 barSDR 266256258.52
0662000250250PN 6 barSDR 2665065010.92
0662000280280PN 6 barSDR 2668068015.96
0662000315315PN 6 barSDR 2691591521.24
0664000110110PN 10 barSDR 173103101.80
0664000125125PN 10 barSDR 173353352.40
0664000140140PN 10 barSDR 174204203.12
0664000160160PN 10 barSDR 174604604.32
0664000180180PN 10 barSDR 175805806.60
0664000200200PN 10 barSDR 176006008.52
0664000225225PN 10 barSDR 1762562512.84
0664000250250PN 10 barSDR 1765065016.44
0664000280280PN 10 barSDR 1768068024.12
0664000315315PN 10 barSDR 1791591532.04
0666000110110PN 16 barSDR 113103102.64
0666000125125PN 16 barSDR 113353353.60
0666000140140PN 16 barSDR 114204204.68
0666000160160PN 16 barSDR 114604606.36
0666000180180PN 16 barSDR 115805809.72
0666000200200PN 16 barSDR 1160060012.48
0666000225225PN 16 barSDR 1162562518.96
0666000250250PN 16 barSDR 1165065024.24
0666000280280PN 16 barSDR 1168068035.52
0666000315315PN 16 barSDR 1191591547.16
0668000110110PN 25 barSDR 7,43103103.72
0668000125125PN 25 barSDR 7,43353355.04
0668000140140PN 25 barSDR 7,44204206.60
0668000160160PN 25 barSDR 7,44604609.12
0668000180180PN 25 barSDR 7,458058013.80
0668000200200PN 25 barSDR 7,460060017.76
0668000225225PN 25 barSDR 7,462562526.88
0668000280280PN 25 barSDR 7,468068050.76
0668000315315PN 25 barSDR 7,491591567.32
