BULKHEAD FITTING
Articolo: 141
PN 10 bar
SDR 17
PE/brass bulkhead fitting. Made by injection moulding, it is used for connection of PE pipes to tanks or cisterns made of fibreglass or other non-weldable material. The grip to the tank wall is ensured byflanges fitted with sealing O-rings. It can be used on potable water piping systems.
Informazioni tecniche
Scheda dati
| Materials |
|
| Certifications |
|
Informazioni tecniche
Technical notes
- Metal/PE connection compliant with standard UNI 9736, with full bore passage.
- Certified for use on potable water systems according to M.D. 174 of 2004.
- Subject to pressure testing according to ISO 1167 and additional MACPLAST test specification.
- Polyethylene dimensions according to UNI EN 12201-3, standard thickness SDR17.
- PE weldable spigot for electrofusion UNI 10521 or butt welding UNI 10520.
- Use a face spanner wrench for tightening.
More information
- Sealing O-ring supplied.
Standards
- UNI EN 12201-3
- ISO 4427-3
Dimensionali

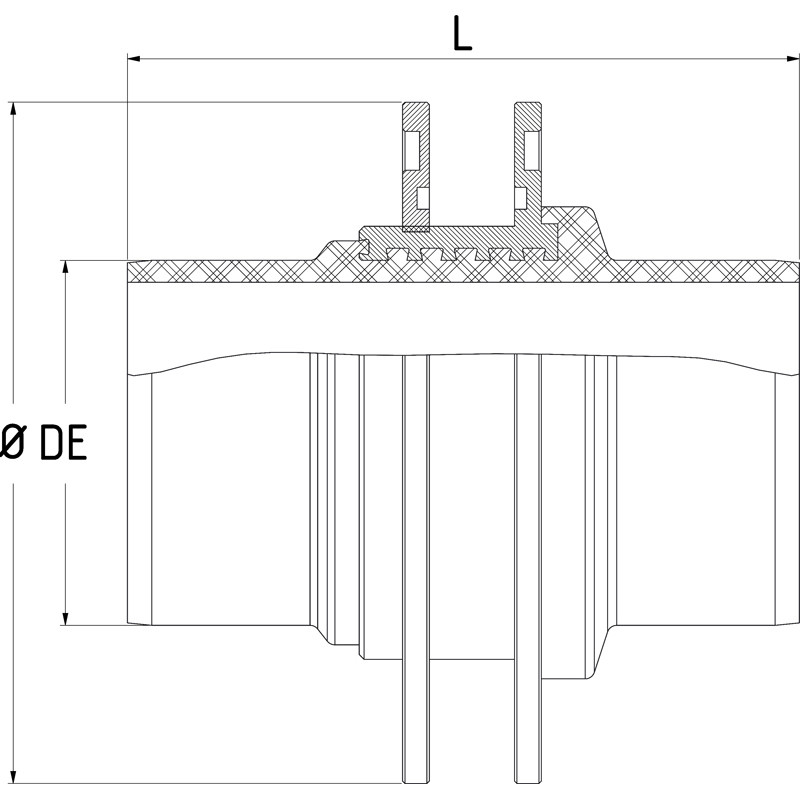

| Reference | DE (mm) | Ø (mm) | L (mm) | Weight (kg) |
|---|---|---|---|---|
| 1410075000 | 75 | 140 | 138 | 1.50 |
| 1410110000 | 110 | 175 | 143 | 2.10 |
