BILATERAL WITH SMOOTH TERMINALS THREADED OUTLET
Articolo: 237
PN 16 bar
Bilateral simple manifold with smooth terminals for connection through welding orelectro-fusion coupler, threaded outlets. Mainly used for connection of householdutilities (meters). Suitable forpotable water.
Informazioni tecniche
Scheda dati
| Materials |
|
| Certifications |
|
Informazioni tecniche
Technical notes
- Certified for use on potable water systems according to M.D. 174 of 2004.
- Subject to pressure testing in laboratory.
- GAS thread fixed female outlet according to UNI EN 228-1.
Standards
- UNI EN 12201-2
- ISO 4427-2
- UNI EN ISO 228-1

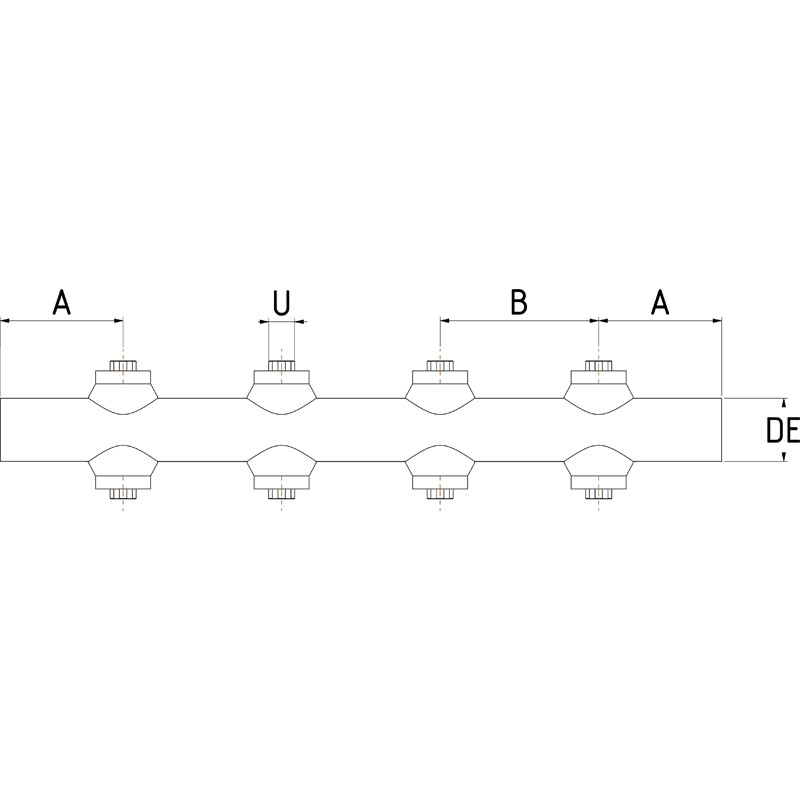

Dimensionali
| Reference | DE (mm) | DN (mm) | A (mm) | B (mm) | U (inch) | Nr. Outlets |
|---|---|---|---|---|---|---|
| 2371050021 | 50 | 40 | 125 | 140 | 1/2" | 2 |
| 2371050022 | 50 | 40 | 90 | 160 | 1/2" | 2 |
| 2371050023 | 50 | 40 | 135 | 180 | 1/2" | 2 |
| 2371050024 | 50 | 40 | 105 | 200 | 1/2" | 2 |
| 2371050041 | 50 | 40 | 125 | 140 | 1/2" | 4 |
| 2371050042 | 50 | 40 | 90 | 160 | 1/2" | 4 |
| 2371050043 | 50 | 40 | 135 | 180 | 1/2" | 4 |
| 2371050044 | 50 | 40 | 105 | 200 | 1/2" | 4 |
| 2371050061 | 50 | 40 | 125 | 140 | 1/2" | 6 |
| 2371050062 | 50 | 40 | 90 | 160 | 1/2" | 6 |
| 2371050063 | 50 | 40 | 135 | 180 | 1/2" | 6 |
| 2371050064 | 50 | 40 | 105 | 200 | 1/2" | 6 |
| 2371050081 | 50 | 40 | 125 | 140 | 1/2" | 8 |
| 2371050082 | 50 | 40 | 90 | 160 | 1/2" | 8 |
| 2371050083 | 50 | 40 | 135 | 180 | 1/2" | 8 |
| 2371050084 | 50 | 40 | 105 | 200 | 1/2" | 8 |
| 2371050101 | 50 | 40 | 125 | 140 | 1/2" | 10 |
| 2371050102 | 50 | 40 | 90 | 160 | 1/2" | 10 |
| 2371050103 | 50 | 40 | 135 | 180 | 1/2" | 10 |
| 2371050104 | 50 | 40 | 105 | 200 | 1/2" | 10 |
| 2371050121 | 50 | 40 | 125 | 140 | 1/2" | 12 |
| 2371050122 | 50 | 40 | 90 | 160 | 1/2" | 12 |
| 2371050123 | 50 | 40 | 135 | 180 | 1/2" | 12 |
| 2371050124 | 50 | 40 | 105 | 200 | 1/2" | 12 |
| 2371050141 | 50 | 40 | 125 | 140 | 1/2" | 14 |
| 2371050142 | 50 | 40 | 90 | 160 | 1/2" | 14 |
| 2371050143 | 50 | 40 | 135 | 180 | 1/2" | 14 |
| 2371050144 | 50 | 40 | 105 | 200 | 1/2" | 14 |
| 2371050161 | 50 | 40 | 125 | 140 | 1/2" | 16 |
| 2371050162 | 50 | 40 | 90 | 160 | 1/2" | 16 |
| 2371050163 | 50 | 40 | 135 | 180 | 1/2" | 16 |
| 2371050164 | 50 | 40 | 105 | 200 | 1/2" | 16 |
| 2371050181 | 50 | 40 | 125 | 140 | 1/2" | 18 |
| 2371050182 | 50 | 40 | 90 | 160 | 1/2" | 18 |
| 2371050183 | 50 | 40 | 135 | 180 | 1/2" | 18 |
| 2371050184 | 50 | 40 | 105 | 200 | 1/2" | 18 |
| 2371050201 | 50 | 40 | 125 | 140 | 1/2" | 20 |
| 2371050202 | 50 | 40 | 90 | 160 | 1/2" | 20 |
| 2371050203 | 50 | 40 | 135 | 180 | 1/2" | 20 |
| 2371050204 | 50 | 40 | 105 | 200 | 1/2" | 20 |
| 2371063020 | 63 | 50 | 125 | 120 | 1/2" | 2 |
| 2371063022 | 63 | 50 | 105 | 160 | 1/2" | 2 |
| 2371063024 | 63 | 50 | 105 | 200 | 1/2" | 2 |
| 2371063025 | 63 | 50 | 55 | 250 | 1/2" | 2 |
| 2371063040 | 63 | 50 | 125 | 120 | 1/2" | 4 |
| 2371063042 | 63 | 50 | 105 | 160 | 1/2" | 4 |
| 2371063044 | 63 | 50 | 105 | 200 | 1/2" | 4 |
| 2371063045 | 63 | 50 | 55 | 250 | 1/2" | 4 |
| 2371063060 | 63 | 50 | 125 | 120 | 1/2" | 6 |
| 2371063062 | 63 | 50 | 105 | 160 | 1/2" | 6 |
| 2371063064 | 63 | 50 | 105 | 200 | 1/2" | 6 |
| 2371063065 | 63 | 50 | 55 | 250 | 1/2" | 6 |
| 2371063080 | 63 | 50 | 125 | 120 | 1/2" | 8 |
| 2371063082 | 63 | 50 | 105 | 160 | 1/2" | 8 |
| 2371063084 | 63 | 50 | 105 | 200 | 1/2" | 8 |
| 2371063085 | 63 | 50 | 55 | 250 | 1/2" | 8 |
| 2371063100 | 63 | 50 | 125 | 120 | 1/2" | 10 |
| 2371063102 | 63 | 50 | 105 | 160 | 1/2" | 10 |
| 2371063104 | 63 | 50 | 105 | 200 | 1/2" | 10 |
| 2371063105 | 63 | 50 | 55 | 250 | 1/2" | 10 |
| 2371063120 | 63 | 50 | 125 | 120 | 1/2" | 12 |
| 2371063122 | 63 | 50 | 105 | 160 | 1/2" | 12 |
| 2371063124 | 63 | 50 | 105 | 200 | 1/2" | 12 |
| 2371063125 | 63 | 50 | 55 | 250 | 1/2" | 12 |
| 2371063140 | 63 | 50 | 125 | 120 | 1/2" | 14 |
| 2371063142 | 63 | 50 | 105 | 160 | 1/2" | 14 |
| 2371063144 | 63 | 50 | 105 | 200 | 1/2" | 14 |
| 2371063145 | 63 | 50 | 55 | 250 | 1/2" | 14 |
| 2371063160 | 63 | 50 | 125 | 120 | 1/2" | 16 |
| 2371063162 | 63 | 50 | 105 | 160 | 1/2" | 16 |
| 2371063164 | 63 | 50 | 105 | 200 | 1/2" | 16 |
| 2371063165 | 63 | 50 | 55 | 250 | 1/2" | 16 |
| 2371063180 | 63 | 50 | 125 | 120 | 1/2" | 18 |
| 2371063182 | 63 | 50 | 105 | 160 | 1/2" | 18 |
| 2371063184 | 63 | 50 | 105 | 200 | 1/2" | 18 |
| 2371063185 | 63 | 50 | 55 | 250 | 1/2" | 18 |
| 2371063200 | 63 | 50 | 125 | 120 | 1/2" | 20 |
| 2371063202 | 63 | 50 | 105 | 160 | 1/2" | 20 |
| 2371063204 | 63 | 50 | 105 | 200 | 1/2" | 20 |
| 2371063205 | 63 | 50 | 55 | 250 | 1/2" | 20 |
| 2372050021 | 50 | 40 | 125 | 140 | 3/4" | 2 |
| 2372050022 | 50 | 40 | 90 | 160 | 3/4" | 2 |
| 2372050023 | 50 | 40 | 135 | 180 | 3/4" | 2 |
| 2372050024 | 50 | 40 | 105 | 200 | 3/4" | 2 |
| 2372050041 | 50 | 40 | 125 | 140 | 3/4" | 4 |
| 2372050042 | 50 | 40 | 90 | 160 | 3/4" | 4 |
| 2372050043 | 50 | 40 | 135 | 180 | 3/4" | 4 |
| 2372050044 | 50 | 40 | 105 | 200 | 3/4" | 4 |
| 2372050061 | 50 | 40 | 125 | 140 | 3/4" | 6 |
| 2372050062 | 50 | 40 | 90 | 160 | 3/4" | 6 |
| 2372050063 | 50 | 40 | 135 | 180 | 3/4" | 6 |
| 2372050064 | 50 | 40 | 105 | 200 | 3/4" | 6 |
| 2372050081 | 50 | 40 | 125 | 140 | 3/4" | 8 |
| 2372050082 | 50 | 40 | 90 | 160 | 3/4" | 8 |
| 2372050083 | 50 | 40 | 135 | 180 | 3/4" | 8 |
| 2372050084 | 50 | 40 | 105 | 200 | 3/4" | 8 |
| 2372050101 | 50 | 40 | 125 | 140 | 3/4" | 10 |
| 2372050102 | 50 | 40 | 90 | 160 | 3/4" | 10 |
| 2372050103 | 50 | 40 | 135 | 180 | 3/4" | 10 |
| 2372050104 | 50 | 40 | 105 | 200 | 3/4" | 10 |
| 2372050121 | 50 | 40 | 125 | 140 | 3/4" | 12 |
| 2372050122 | 50 | 40 | 90 | 160 | 3/4" | 12 |
| 2372050123 | 50 | 40 | 135 | 180 | 3/4" | 12 |
| 2372050124 | 50 | 40 | 105 | 200 | 3/4" | 12 |
| 2372050141 | 50 | 40 | 90 | 160 | 3/4" | 14 |
| 2372050142 | 50 | 40 | 135 | 180 | 3/4" | 14 |
| 2372050144 | 50 | 40 | 105 | 200 | 3/4" | 14 |
| 2372050161 | 50 | 40 | 125 | 140 | 3/4" | 16 |
| 2372050162 | 50 | 40 | 90 | 160 | 3/4" | 16 |
| 2372050163 | 50 | 40 | 135 | 180 | 3/4" | 16 |
| 2372050164 | 50 | 40 | 105 | 200 | 3/4" | 16 |
| 2372050181 | 50 | 40 | 125 | 140 | 3/4" | 18 |
| 2372050182 | 50 | 40 | 90 | 160 | 3/4" | 18 |
| 2372050183 | 50 | 40 | 135 | 180 | 3/4" | 18 |
| 2372050184 | 50 | 40 | 105 | 200 | 3/4" | 18 |
| 2372050201 | 50 | 40 | 125 | 140 | 3/4" | 20 |
| 2372050202 | 50 | 40 | 90 | 160 | 3/4" | 20 |
| 2372050203 | 50 | 40 | 135 | 180 | 3/4" | 20 |
| 2372050204 | 50 | 40 | 105 | 200 | 3/4" | 20 |
| 2372063020 | 63 | 50 | 125 | 120 | 3/4" | 2 |
| 2372063022 | 63 | 50 | 105 | 160 | 3/4" | 2 |
| 2372063024 | 63 | 50 | 105 | 200 | 3/4" | 2 |
| 2372063025 | 63 | 50 | 55 | 250 | 3/4" | 2 |
| 2372063040 | 63 | 50 | 125 | 120 | 3/4" | 4 |
| 2372063042 | 63 | 50 | 105 | 160 | 3/4" | 4 |
| 2372063044 | 63 | 50 | 105 | 200 | 3/4" | 4 |
| 2372063045 | 63 | 50 | 55 | 250 | 3/4" | 4 |
| 2372063060 | 63 | 50 | 125 | 120 | 3/4" | 6 |
| 2372063062 | 63 | 50 | 105 | 160 | 3/4" | 6 |
| 2372063064 | 63 | 50 | 105 | 200 | 3/4" | 6 |
| 2372063065 | 63 | 50 | 55 | 250 | 3/4" | 6 |
| 2372063080 | 63 | 50 | 125 | 120 | 3/4" | 8 |
| 2372063082 | 63 | 50 | 105 | 160 | 3/4" | 8 |
| 2372063084 | 63 | 50 | 105 | 200 | 3/4" | 8 |
| 2372063085 | 63 | 50 | 55 | 250 | 3/4" | 8 |
| 2372063100 | 63 | 50 | 125 | 120 | 3/4" | 10 |
| 2372063102 | 63 | 50 | 105 | 160 | 3/4" | 10 |
| 2372063104 | 63 | 50 | 105 | 200 | 3/4" | 10 |
| 2372063105 | 63 | 50 | 55 | 250 | 3/4" | 10 |
| 2372063120 | 63 | 50 | 125 | 120 | 3/4" | 12 |
| 2372063122 | 63 | 50 | 105 | 160 | 3/4" | 12 |
| 2372063124 | 63 | 50 | 105 | 200 | 3/4" | 12 |
| 2372063125 | 63 | 50 | 55 | 250 | 3/4" | 12 |
| 2372063140 | 63 | 50 | 125 | 120 | 3/4" | 14 |
| 2372063142 | 63 | 50 | 105 | 160 | 3/4" | 14 |
| 2372063144 | 63 | 50 | 105 | 200 | 3/4" | 14 |
| 2372063145 | 63 | 50 | 55 | 250 | 3/4" | 14 |
| 2372063160 | 63 | 50 | 125 | 120 | 3/4" | 16 |
| 2372063162 | 63 | 50 | 105 | 160 | 3/4" | 16 |
| 2372063164 | 63 | 50 | 105 | 200 | 3/4" | 16 |
| 2372063165 | 63 | 50 | 55 | 250 | 3/4" | 16 |
| 2372063180 | 63 | 50 | 125 | 120 | 3/4" | 18 |
| 2372063182 | 63 | 50 | 105 | 160 | 3/4" | 18 |
| 2372063184 | 63 | 50 | 105 | 200 | 3/4" | 18 |
| 2372063185 | 63 | 50 | 55 | 250 | 3/4" | 18 |
| 2372063200 | 63 | 50 | 125 | 120 | 3/4" | 20 |
| 2372063202 | 63 | 50 | 105 | 160 | 3/4" | 20 |
| 2372063204 | 63 | 50 | 105 | 200 | 3/4" | 20 |
| 2372063205 | 63 | 50 | 55 | 250 | 3/4" | 20 |
| 2373063020 | 63 | 50 | 125 | 120 | 1" | 2 |
| 2373063022 | 63 | 50 | 105 | 160 | 1" | 2 |
| 2373063024 | 63 | 50 | 105 | 200 | 1" | 2 |
| 2373063025 | 63 | 50 | 55 | 250 | 1" | 2 |
| 2373063040 | 63 | 50 | 125 | 120 | 1" | 4 |
| 2373063042 | 63 | 50 | 105 | 160 | 1" | 4 |
| 2373063044 | 63 | 50 | 105 | 200 | 1" | 4 |
| 2373063045 | 63 | 50 | 55 | 250 | 1" | 4 |
| 2373063060 | 63 | 50 | 125 | 120 | 1" | 6 |
| 2373063062 | 63 | 50 | 105 | 160 | 1" | 6 |
| 2373063064 | 63 | 50 | 105 | 200 | 1" | 6 |
| 2373063065 | 63 | 50 | 55 | 250 | 1" | 6 |
| 2373063080 | 63 | 50 | 125 | 120 | 1" | 8 |
| 2373063082 | 63 | 50 | 105 | 160 | 1" | 8 |
| 2373063084 | 63 | 50 | 105 | 200 | 1" | 8 |
| 2373063085 | 63 | 50 | 55 | 250 | 1" | 8 |
| 2373063100 | 63 | 50 | 125 | 120 | 1" | 10 |
| 2373063102 | 63 | 50 | 105 | 160 | 1" | 10 |
| 2373063104 | 63 | 50 | 105 | 200 | 1" | 10 |
| 2373063105 | 63 | 50 | 55 | 250 | 1" | 10 |
| 2373063120 | 63 | 50 | 125 | 120 | 1" | 12 |
| 2373063122 | 63 | 50 | 105 | 160 | 1" | 12 |
| 2373063124 | 63 | 50 | 105 | 200 | 1" | 12 |
| 2373063125 | 63 | 50 | 55 | 250 | 1" | 12 |
| 2373063140 | 63 | 50 | 125 | 120 | 1" | 14 |
| 2373063142 | 63 | 50 | 105 | 160 | 1" | 14 |
| 2373063144 | 63 | 50 | 105 | 200 | 1" | 14 |
| 2373063145 | 63 | 50 | 55 | 250 | 1" | 14 |
| 2373063160 | 63 | 50 | 125 | 120 | 1" | 16 |
| 2373063162 | 63 | 50 | 105 | 160 | 1" | 16 |
| 2373063164 | 63 | 50 | 105 | 200 | 1" | 16 |
| 2373063165 | 63 | 50 | 55 | 250 | 1" | 16 |
| 2373063180 | 63 | 50 | 125 | 120 | 1" | 18 |
| 2373063182 | 63 | 50 | 105 | 160 | 1" | 18 |
| 2373063184 | 63 | 50 | 105 | 200 | 1" | 18 |
| 2373063185 | 63 | 50 | 55 | 250 | 1" | 18 |
| 2373063200 | 63 | 50 | 125 | 120 | 1" | 20 |
| 2373063202 | 63 | 50 | 105 | 160 | 1" | 20 |
| 2373063204 | 63 | 50 | 105 | 200 | 1" | 20 |
| 2373063205 | 63 | 50 | 55 | 250 | 1" | 20 |
| 2374110020 | 110 | 100 | 110 | 120 | 1 1/4" | 2 |
| 2374110022 | 110 | 100 | 85 | 160 | 1 1/4" | 2 |
| 2374110040 | 110 | 100 | 110 | 120 | 1 1/4" | 4 |
| 2374110042 | 110 | 100 | 85 | 160 | 1 1/4" | 4 |
| 2374110060 | 110 | 100 | 110 | 120 | 1 1/4" | 6 |
| 2374110062 | 110 | 100 | 85 | 160 | 1 1/4" | 6 |
| 2374110080 | 110 | 100 | 110 | 120 | 1 1/4" | 8 |
| 2374110082 | 110 | 100 | 85 | 160 | 1 1/4" | 8 |
| 2374110100 | 110 | 100 | 110 | 120 | 1 1/4" | 10 |
| 2374110102 | 110 | 100 | 85 | 160 | 1 1/4" | 10 |
| 2374110120 | 110 | 100 | 110 | 120 | 1 1/4" | 12 |
| 2374110122 | 110 | 100 | 85 | 160 | 1 1/4" | 12 |
| 2374110140 | 110 | 100 | 110 | 120 | 1 1/4" | 14 |
| 2374110142 | 110 | 100 | 85 | 160 | 1 1/4" | 14 |
| 2374110160 | 110 | 100 | 110 | 120 | 1 1/4" | 16 |
| 2374110162 | 110 | 100 | 85 | 160 | 1 1/4" | 16 |
| 2374110180 | 110 | 100 | 110 | 120 | 1 1/4" | 18 |
| 2374110182 | 110 | 100 | 85 | 160 | 1 1/4" | 18 |
| 2374110200 | 110 | 100 | 110 | 120 | 1 1/4" | 20 |
| 2374110202 | 110 | 100 | 85 | 160 | 1 1/4" | 20 |
| 2375110020 | 110 | 100 | 110 | 120 | 1 1/2" | 2 |
| 2375110022 | 110 | 100 | 85 | 160 | 1 1/2" | 2 |
| 2375110040 | 110 | 100 | 110 | 120 | 1 1/2" | 4 |
| 2375110042 | 110 | 100 | 85 | 160 | 1 1/2" | 4 |
| 2375110060 | 110 | 100 | 110 | 120 | 1 1/2" | 6 |
| 2375110062 | 110 | 100 | 85 | 160 | 1 1/2" | 6 |
| 2375110080 | 110 | 100 | 110 | 120 | 1 1/2" | 8 |
| 2375110082 | 110 | 100 | 85 | 160 | 1 1/2" | 8 |
| 2375110100 | 110 | 100 | 110 | 120 | 1 1/2" | 10 |
| 2375110102 | 110 | 100 | 85 | 160 | 1 1/2" | 10 |
| 2375110120 | 110 | 100 | 110 | 120 | 1 1/2" | 12 |
| 2375110122 | 110 | 100 | 85 | 160 | 1 1/2" | 12 |
| 2375110140 | 110 | 100 | 110 | 120 | 1 1/2" | 14 |
| 2375110142 | 110 | 100 | 85 | 160 | 1 1/2" | 14 |
| 2375110160 | 110 | 100 | 110 | 120 | 1 1/2" | 16 |
| 2375110162 | 110 | 100 | 85 | 160 | 1 1/2" | 16 |
| 2375110180 | 110 | 100 | 110 | 120 | 1 1/2" | 18 |
| 2375110182 | 110 | 100 | 85 | 160 | 1 1/2" | 18 |
| 2375110200 | 110 | 100 | 110 | 120 | 1 1/2" | 20 |
| 2375110202 | 110 | 100 | 85 | 160 | 1 1/2" | 20 |
| 2376110020 | 110 | 100 | 110 | 120 | 2" | 2 |
| 2376110022 | 110 | 100 | 85 | 160 | 2" | 2 |
| 2376110040 | 110 | 100 | 110 | 120 | 2" | 4 |
| 2376110042 | 110 | 100 | 85 | 160 | 2" | 4 |
| 2376110060 | 110 | 100 | 110 | 120 | 2" | 6 |
| 2376110062 | 110 | 100 | 85 | 160 | 2" | 6 |
| 2376110080 | 110 | 100 | 110 | 120 | 2" | 8 |
| 2376110082 | 110 | 100 | 85 | 160 | 2" | 8 |
| 2376110100 | 110 | 100 | 110 | 120 | 2" | 10 |
| 2376110102 | 110 | 100 | 85 | 160 | 2" | 10 |
| 2376110120 | 110 | 100 | 110 | 120 | 2" | 12 |
| 2376110122 | 110 | 100 | 85 | 160 | 2" | 12 |
| 2376110140 | 110 | 100 | 110 | 120 | 2" | 14 |
| 2376110142 | 110 | 100 | 85 | 160 | 2" | 14 |
| 2376110160 | 110 | 100 | 110 | 120 | 2" | 16 |
| 2376110162 | 110 | 100 | 85 | 160 | 2" | 16 |
| 2376110180 | 110 | 100 | 110 | 120 | 2" | 18 |
| 2376110182 | 110 | 100 | 85 | 160 | 2" | 18 |
| 2376110200 | 110 | 100 | 110 | 120 | 2" | 20 |
| 2376110202 | 110 | 100 | 85 | 160 | 2" | 20 |
