BILATERAL WITH SMOOTH TERMINAL AND END C THREADED OUTLET
Articolo: 233
PN 16 bar
End-of-line bilateral simple manifold withsmooth terminal for connection through welding or electro-fusion coupler, threaded outlets. Mainly used for connection ofhousehold utilities (meters). Suitable for potable water.
Informazioni tecniche
Scheda dati
| Materials |
|
| Certifications |
|
Informazioni tecniche
Technical notes
- Certified for use on potable water systems according to M.D. 174 of 2004.
- Subject to pressure testing in laboratory.
- GAS thread fixed female outlet according to UNI EN 228-1.
Standards
- UNI EN 12201-2
- ISO 4427-2
- UNI EN ISO 228-1

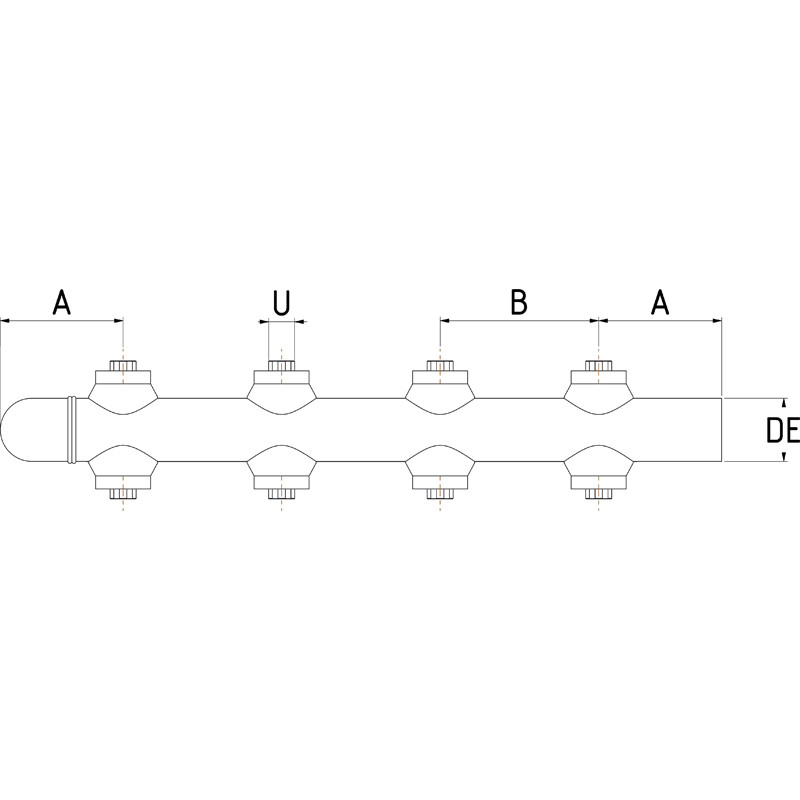

Dimensionali
| Reference | DE (mm) | DN (mm) | A (mm) | B (mm) | U (inch) | Nr. Outlets |
|---|---|---|---|---|---|---|
| 2331050021 | 50 | 40 | 125 | 140 | 1/2" | 2 |
| 2331050022 | 50 | 40 | 90 | 160 | 1/2" | 2 |
| 2331050023 | 50 | 40 | 135 | 180 | 1/2" | 2 |
| 2331050024 | 50 | 40 | 105 | 200 | 1/2" | 2 |
| 2331050041 | 50 | 40 | 125 | 140 | 1/2" | 4 |
| 2331050042 | 50 | 40 | 90 | 160 | 1/2" | 4 |
| 2331050043 | 50 | 40 | 135 | 180 | 1/2" | 4 |
| 2331050044 | 50 | 40 | 105 | 200 | 1/2" | 4 |
| 2331050061 | 50 | 40 | 125 | 140 | 1/2" | 6 |
| 2331050062 | 50 | 40 | 90 | 160 | 1/2" | 6 |
| 2331050063 | 50 | 40 | 135 | 180 | 1/2" | 6 |
| 2331050064 | 50 | 40 | 105 | 200 | 1/2" | 6 |
| 2331050081 | 50 | 40 | 125 | 140 | 1/2" | 8 |
| 2331050082 | 50 | 40 | 90 | 160 | 1/2" | 8 |
| 2331050083 | 50 | 40 | 135 | 180 | 1/2" | 8 |
| 2331050084 | 50 | 40 | 105 | 200 | 1/2" | 8 |
| 2331050101 | 50 | 40 | 125 | 140 | 1/2" | 10 |
| 2331050102 | 50 | 40 | 90 | 160 | 1/2" | 10 |
| 2331050103 | 50 | 40 | 135 | 180 | 1/2" | 10 |
| 2331050104 | 50 | 40 | 105 | 200 | 1/2" | 10 |
| 2331050121 | 50 | 40 | 125 | 140 | 1/2" | 12 |
| 2331050122 | 50 | 40 | 90 | 160 | 1/2" | 12 |
| 2331050123 | 50 | 40 | 135 | 180 | 1/2" | 12 |
| 2331050124 | 50 | 40 | 105 | 200 | 1/2" | 12 |
| 2331050141 | 50 | 40 | 125 | 140 | 1/2" | 14 |
| 2331050142 | 50 | 40 | 90 | 160 | 1/2" | 14 |
| 2331050143 | 50 | 40 | 135 | 180 | 1/2" | 14 |
| 2331050144 | 50 | 40 | 105 | 200 | 1/2" | 14 |
| 2331050161 | 50 | 40 | 125 | 140 | 1/2" | 16 |
| 2331050162 | 50 | 40 | 90 | 160 | 1/2" | 16 |
| 2331050163 | 50 | 40 | 135 | 180 | 1/2" | 16 |
| 2331050164 | 50 | 40 | 105 | 200 | 1/2" | 16 |
| 2331050181 | 50 | 40 | 125 | 140 | 1/2" | 18 |
| 2331050182 | 50 | 40 | 90 | 160 | 1/2" | 18 |
| 2331050183 | 50 | 40 | 135 | 180 | 1/2" | 18 |
| 2331050184 | 50 | 40 | 105 | 200 | 1/2" | 18 |
| 2331050201 | 50 | 40 | 125 | 140 | 1/2" | 20 |
| 2331050202 | 50 | 40 | 90 | 160 | 1/2" | 20 |
| 2331050203 | 50 | 40 | 135 | 180 | 1/2" | 20 |
| 2331050204 | 50 | 40 | 105 | 200 | 1/2" | 20 |
| 2331063020 | 63 | 50 | 125 | 120 | 1/2" | 2 |
| 2331063022 | 63 | 50 | 105 | 160 | 1/2" | 2 |
| 2331063024 | 63 | 50 | 105 | 200 | 1/2" | 2 |
| 2331063025 | 63 | 50 | 55 | 250 | 1/2" | 2 |
| 2331063040 | 63 | 50 | 125 | 120 | 1/2" | 4 |
| 2331063042 | 63 | 50 | 105 | 160 | 1/2" | 4 |
| 2331063044 | 63 | 50 | 105 | 200 | 1/2" | 4 |
| 2331063045 | 63 | 50 | 55 | 250 | 1/2" | 4 |
| 2331063060 | 63 | 50 | 125 | 120 | 1/2" | 6 |
| 2331063062 | 63 | 50 | 105 | 160 | 1/2" | 6 |
| 2331063064 | 63 | 50 | 105 | 200 | 1/2" | 6 |
| 2331063065 | 63 | 50 | 55 | 250 | 1/2" | 6 |
| 2331063080 | 63 | 50 | 125 | 120 | 1/2" | 8 |
| 2331063082 | 63 | 50 | 105 | 160 | 1/2" | 8 |
| 2331063084 | 63 | 50 | 105 | 200 | 1/2" | 8 |
| 2331063085 | 63 | 50 | 55 | 250 | 1/2" | 8 |
| 2331063100 | 63 | 50 | 125 | 120 | 1/2" | 10 |
| 2331063102 | 63 | 50 | 105 | 160 | 1/2" | 10 |
| 2331063104 | 63 | 50 | 105 | 200 | 1/2" | 10 |
| 2331063105 | 63 | 50 | 55 | 250 | 1/2" | 10 |
| 2331063120 | 63 | 50 | 125 | 120 | 1/2" | 12 |
| 2331063122 | 63 | 50 | 105 | 160 | 1/2" | 12 |
| 2331063124 | 63 | 50 | 105 | 200 | 1/2" | 12 |
| 2331063125 | 63 | 50 | 55 | 250 | 1/2" | 12 |
| 2331063140 | 63 | 50 | 125 | 120 | 1/2" | 14 |
| 2331063142 | 63 | 50 | 105 | 160 | 1/2" | 14 |
| 2331063144 | 63 | 50 | 105 | 200 | 1/2" | 14 |
| 2331063145 | 63 | 50 | 55 | 250 | 1/2" | 14 |
| 2331063160 | 63 | 50 | 125 | 120 | 1/2" | 16 |
| 2331063162 | 63 | 50 | 105 | 160 | 1/2" | 16 |
| 2331063164 | 63 | 50 | 105 | 200 | 1/2" | 16 |
| 2331063165 | 63 | 50 | 55 | 250 | 1/2" | 16 |
| 2331063180 | 63 | 50 | 125 | 120 | 1/2" | 18 |
| 2331063182 | 63 | 50 | 105 | 160 | 1/2" | 18 |
| 2331063184 | 63 | 50 | 105 | 200 | 1/2" | 18 |
| 2331063185 | 63 | 50 | 55 | 250 | 1/2" | 18 |
| 2331063200 | 63 | 50 | 125 | 120 | 1/2" | 20 |
| 2331063202 | 63 | 50 | 105 | 160 | 1/2" | 20 |
| 2331063204 | 63 | 50 | 105 | 200 | 1/2" | 20 |
| 2331063205 | 63 | 50 | 55 | 250 | 1/2" | 20 |
| 2332050021 | 50 | 40 | 125 | 140 | 3/4" | 2 |
| 2332050022 | 50 | 40 | 90 | 160 | 3/4" | 2 |
| 2332050023 | 50 | 40 | 135 | 180 | 3/4" | 2 |
| 2332050024 | 50 | 40 | 105 | 200 | 3/4" | 2 |
| 2332050041 | 50 | 40 | 125 | 140 | 3/4" | 4 |
| 2332050042 | 50 | 40 | 90 | 160 | 3/4" | 4 |
| 2332050043 | 50 | 40 | 135 | 180 | 3/4" | 4 |
| 2332050044 | 50 | 40 | 105 | 200 | 3/4" | 4 |
| 2332050061 | 50 | 40 | 125 | 140 | 3/4" | 6 |
| 2332050062 | 50 | 40 | 90 | 160 | 3/4" | 6 |
| 2332050063 | 50 | 40 | 135 | 180 | 3/4" | 6 |
| 2332050064 | 50 | 40 | 105 | 200 | 3/4" | 6 |
| 2332050081 | 50 | 40 | 125 | 140 | 3/4" | 8 |
| 2332050082 | 50 | 40 | 90 | 160 | 3/4" | 8 |
| 2332050083 | 50 | 40 | 135 | 180 | 3/4" | 8 |
| 2332050084 | 50 | 40 | 105 | 200 | 3/4" | 8 |
| 2332050101 | 50 | 40 | 125 | 140 | 3/4" | 10 |
| 2332050102 | 50 | 40 | 90 | 160 | 3/4" | 10 |
| 2332050103 | 50 | 40 | 135 | 180 | 3/4" | 10 |
| 2332050104 | 50 | 40 | 105 | 200 | 3/4" | 10 |
| 2332050121 | 50 | 40 | 125 | 140 | 3/4" | 12 |
| 2332050122 | 50 | 40 | 90 | 160 | 3/4" | 12 |
| 2332050123 | 50 | 40 | 135 | 180 | 3/4" | 12 |
| 2332050124 | 50 | 40 | 105 | 200 | 3/4" | 12 |
| 2332050141 | 50 | 40 | 125 | 140 | 3/4" | 14 |
| 2332050142 | 50 | 40 | 90 | 160 | 3/4" | 14 |
| 2332050143 | 50 | 40 | 135 | 180 | 3/4" | 14 |
| 2332050144 | 50 | 40 | 105 | 200 | 3/4" | 14 |
| 2332050161 | 50 | 40 | 125 | 140 | 3/4" | 16 |
| 2332050162 | 50 | 40 | 90 | 160 | 3/4" | 16 |
| 2332050163 | 50 | 40 | 135 | 180 | 3/4" | 16 |
| 2332050164 | 50 | 40 | 105 | 200 | 3/4" | 16 |
| 2332050181 | 50 | 40 | 125 | 140 | 3/4" | 18 |
| 2332050182 | 50 | 40 | 90 | 160 | 3/4" | 18 |
| 2332050183 | 50 | 40 | 135 | 180 | 3/4" | 18 |
| 2332050184 | 50 | 40 | 105 | 200 | 3/4" | 18 |
| 2332050201 | 50 | 40 | 125 | 140 | 3/4" | 20 |
| 2332050202 | 50 | 40 | 90 | 160 | 3/4" | 20 |
| 2332050203 | 50 | 40 | 135 | 180 | 3/4" | 20 |
| 2332050204 | 50 | 40 | 105 | 200 | 3/4" | 20 |
| 2332063020 | 63 | 50 | 125 | 120 | 3/4" | 2 |
| 2332063022 | 63 | 50 | 105 | 160 | 3/4" | 2 |
| 2332063024 | 63 | 50 | 105 | 200 | 3/4" | 2 |
| 2332063025 | 63 | 50 | 55 | 250 | 3/4" | 2 |
| 2332063040 | 63 | 50 | 125 | 120 | 3/4" | 4 |
| 2332063042 | 63 | 50 | 105 | 160 | 3/4" | 4 |
| 2332063044 | 63 | 50 | 105 | 200 | 3/4" | 4 |
| 2332063045 | 63 | 50 | 55 | 250 | 3/4" | 4 |
| 2332063060 | 63 | 50 | 125 | 120 | 3/4" | 6 |
| 2332063062 | 63 | 50 | 105 | 160 | 3/4" | 6 |
| 2332063064 | 63 | 50 | 105 | 200 | 3/4" | 6 |
| 2332063065 | 63 | 50 | 55 | 250 | 3/4" | 6 |
| 2332063080 | 63 | 50 | 125 | 120 | 3/4" | 8 |
| 2332063082 | 63 | 50 | 105 | 160 | 3/4" | 8 |
| 2332063084 | 63 | 50 | 105 | 200 | 3/4" | 8 |
| 2332063085 | 63 | 50 | 55 | 250 | 3/4" | 8 |
| 2332063100 | 63 | 50 | 125 | 120 | 3/4" | 10 |
| 2332063102 | 63 | 50 | 105 | 160 | 3/4" | 10 |
| 2332063104 | 63 | 50 | 105 | 200 | 3/4" | 10 |
| 2332063105 | 63 | 50 | 55 | 250 | 3/4" | 10 |
| 2332063120 | 63 | 50 | 125 | 120 | 3/4" | 12 |
| 2332063122 | 63 | 50 | 105 | 160 | 3/4" | 12 |
| 2332063124 | 63 | 50 | 105 | 200 | 3/4" | 12 |
| 2332063125 | 63 | 50 | 55 | 250 | 3/4" | 12 |
| 2332063140 | 63 | 50 | 125 | 120 | 3/4" | 14 |
| 2332063142 | 63 | 50 | 105 | 160 | 3/4" | 14 |
| 2332063144 | 63 | 50 | 105 | 200 | 3/4" | 14 |
| 2332063145 | 63 | 50 | 55 | 250 | 3/4" | 14 |
| 2332063160 | 63 | 50 | 125 | 120 | 3/4" | 16 |
| 2332063162 | 63 | 50 | 105 | 160 | 3/4" | 16 |
| 2332063164 | 63 | 50 | 105 | 200 | 3/4" | 16 |
| 2332063165 | 63 | 50 | 55 | 250 | 3/4" | 16 |
| 2332063180 | 63 | 50 | 125 | 120 | 3/4" | 18 |
| 2332063182 | 63 | 50 | 105 | 160 | 3/4" | 18 |
| 2332063184 | 63 | 50 | 105 | 200 | 3/4" | 18 |
| 2332063185 | 63 | 50 | 55 | 250 | 3/4" | 18 |
| 2332063200 | 63 | 50 | 125 | 120 | 3/4" | 20 |
| 2332063202 | 63 | 50 | 105 | 160 | 3/4" | 20 |
| 2332063204 | 63 | 50 | 105 | 200 | 3/4" | 20 |
| 2332063205 | 63 | 50 | 55 | 250 | 3/4" | 20 |
| 2333063020 | 63 | 50 | 125 | 120 | 1" | 2 |
| 2333063022 | 63 | 50 | 105 | 160 | 1" | 2 |
| 2333063024 | 63 | 50 | 105 | 200 | 1" | 2 |
| 2333063025 | 63 | 50 | 55 | 250 | 1" | 2 |
| 2333063040 | 63 | 50 | 125 | 120 | 1" | 4 |
| 2333063042 | 63 | 50 | 105 | 160 | 1" | 4 |
| 2333063044 | 63 | 50 | 105 | 200 | 1" | 4 |
| 2333063045 | 63 | 50 | 55 | 250 | 1" | 4 |
| 2333063060 | 63 | 50 | 125 | 120 | 1" | 6 |
| 2333063062 | 63 | 50 | 105 | 160 | 1" | 6 |
| 2333063064 | 63 | 50 | 105 | 200 | 1" | 6 |
| 2333063065 | 63 | 50 | 55 | 250 | 1" | 6 |
| 2333063080 | 63 | 50 | 125 | 120 | 1" | 8 |
| 2333063082 | 63 | 50 | 105 | 160 | 1" | 8 |
| 2333063084 | 63 | 50 | 105 | 200 | 1" | 8 |
| 2333063085 | 63 | 50 | 55 | 250 | 1" | 8 |
| 2333063100 | 63 | 50 | 125 | 120 | 1" | 10 |
| 2333063102 | 63 | 50 | 105 | 160 | 1" | 10 |
| 2333063104 | 63 | 50 | 105 | 200 | 1" | 10 |
| 2333063105 | 63 | 50 | 55 | 250 | 1" | 10 |
| 2333063120 | 63 | 50 | 125 | 120 | 1" | 12 |
| 2333063122 | 63 | 50 | 105 | 160 | 1" | 12 |
| 2333063124 | 63 | 50 | 105 | 200 | 1" | 12 |
| 2333063125 | 63 | 50 | 55 | 250 | 1" | 12 |
| 2333063140 | 63 | 50 | 125 | 120 | 1" | 14 |
| 2333063142 | 63 | 50 | 105 | 160 | 1" | 14 |
| 2333063144 | 63 | 50 | 105 | 200 | 1" | 14 |
| 2333063145 | 63 | 50 | 55 | 250 | 1" | 14 |
| 2333063160 | 63 | 50 | 125 | 120 | 1" | 16 |
| 2333063162 | 63 | 50 | 105 | 160 | 1" | 16 |
| 2333063164 | 63 | 50 | 105 | 200 | 1" | 16 |
| 2333063165 | 63 | 50 | 55 | 250 | 1" | 16 |
| 2333063180 | 63 | 50 | 125 | 120 | 1" | 18 |
| 2333063182 | 63 | 50 | 105 | 160 | 1" | 18 |
| 2333063184 | 63 | 50 | 105 | 200 | 1" | 18 |
| 2333063185 | 63 | 50 | 55 | 250 | 1" | 18 |
| 2333063200 | 63 | 50 | 125 | 120 | 1" | 20 |
| 2333063202 | 63 | 50 | 105 | 160 | 1" | 20 |
| 2333063204 | 63 | 50 | 105 | 200 | 1" | 20 |
| 2333063205 | 63 | 50 | 55 | 250 | 1" | 20 |
| 2334110020 | 110 | 100 | 110 | 120 | 1 1/4" | 2 |
| 2334110022 | 110 | 100 | 85 | 160 | 1 1/4" | 2 |
| 2334110040 | 110 | 100 | 110 | 120 | 1 1/4" | 4 |
| 2334110042 | 110 | 100 | 85 | 160 | 1 1/4" | 4 |
| 2334110060 | 110 | 100 | 110 | 120 | 1 1/4" | 6 |
| 2334110062 | 110 | 100 | 85 | 160 | 1 1/4" | 6 |
| 2334110080 | 110 | 100 | 110 | 120 | 1 1/4" | 8 |
| 2334110082 | 110 | 100 | 85 | 160 | 1 1/4" | 8 |
| 2334110100 | 110 | 100 | 110 | 120 | 1 1/4" | 10 |
| 2334110102 | 110 | 100 | 85 | 160 | 1 1/4" | 10 |
| 2334110120 | 110 | 100 | 110 | 120 | 1 1/4" | 12 |
| 2334110122 | 110 | 100 | 85 | 160 | 1 1/4" | 12 |
| 2334110140 | 110 | 100 | 110 | 120 | 1 1/4" | 14 |
| 2334110142 | 110 | 100 | 85 | 160 | 1 1/4" | 14 |
| 2334110160 | 110 | 100 | 110 | 120 | 1 1/4" | 16 |
| 2334110162 | 110 | 100 | 85 | 160 | 1 1/4" | 16 |
| 2334110180 | 110 | 100 | 110 | 120 | 1 1/4" | 18 |
| 2334110182 | 110 | 100 | 85 | 160 | 1 1/4" | 18 |
| 2334110200 | 110 | 100 | 110 | 120 | 1 1/4" | 20 |
| 2334110202 | 110 | 100 | 85 | 160 | 1 1/4" | 20 |
| 2335110020 | 110 | 100 | 110 | 120 | 1 1/2" | 2 |
| 2335110022 | 110 | 100 | 85 | 160 | 1 1/2" | 2 |
| 2335110040 | 110 | 100 | 110 | 120 | 1 1/2" | 4 |
| 2335110042 | 110 | 100 | 85 | 160 | 1 1/2" | 4 |
| 2335110060 | 110 | 100 | 110 | 120 | 1 1/2" | 6 |
| 2335110062 | 110 | 100 | 85 | 160 | 1 1/2" | 6 |
| 2335110080 | 110 | 100 | 110 | 120 | 1 1/2" | 8 |
| 2335110082 | 110 | 100 | 85 | 160 | 1 1/2" | 8 |
| 2335110100 | 110 | 100 | 110 | 120 | 1 1/2" | 10 |
| 2335110102 | 110 | 100 | 85 | 160 | 1 1/2" | 10 |
| 2335110120 | 110 | 100 | 110 | 120 | 1 1/2" | 12 |
| 2335110122 | 110 | 100 | 85 | 160 | 1 1/2" | 12 |
| 2335110140 | 110 | 100 | 110 | 120 | 1 1/2" | 14 |
| 2335110142 | 110 | 100 | 85 | 160 | 1 1/2" | 14 |
| 2335110160 | 110 | 100 | 110 | 120 | 1 1/2" | 16 |
| 2335110162 | 110 | 100 | 85 | 160 | 1 1/2" | 16 |
| 2335110180 | 110 | 100 | 110 | 120 | 1 1/2" | 18 |
| 2335110182 | 110 | 100 | 85 | 160 | 1 1/2" | 18 |
| 2335110200 | 110 | 100 | 110 | 120 | 1 1/2" | 20 |
| 2335110202 | 110 | 100 | 85 | 160 | 1 1/2" | 20 |
| 2336110020 | 110 | 100 | 110 | 120 | 2" | 2 |
| 2336110022 | 110 | 100 | 85 | 160 | 2" | 2 |
| 2336110040 | 110 | 100 | 110 | 120 | 2" | 4 |
| 2336110042 | 110 | 100 | 85 | 160 | 2" | 4 |
| 2336110060 | 110 | 100 | 110 | 120 | 2" | 6 |
| 2336110062 | 110 | 100 | 85 | 160 | 2" | 6 |
| 2336110080 | 110 | 100 | 110 | 120 | 2" | 8 |
| 2336110082 | 110 | 100 | 85 | 160 | 2" | 8 |
| 2336110100 | 110 | 100 | 110 | 120 | 2" | 10 |
| 2336110102 | 110 | 100 | 85 | 160 | 2" | 10 |
| 2336110120 | 110 | 100 | 110 | 120 | 2" | 12 |
| 2336110122 | 110 | 100 | 85 | 160 | 2" | 12 |
| 2336110140 | 110 | 100 | 110 | 120 | 2" | 14 |
| 2336110142 | 110 | 100 | 85 | 160 | 2" | 14 |
| 2336110160 | 110 | 100 | 110 | 120 | 2" | 16 |
| 2336110162 | 110 | 100 | 85 | 160 | 2" | 16 |
| 2336110180 | 110 | 100 | 110 | 120 | 2" | 18 |
| 2336110182 | 110 | 100 | 85 | 160 | 2" | 18 |
| 2336110200 | 110 | 100 | 110 | 120 | 2" | 20 |
| 2336110202 | 110 | 100 | 85 | 160 | 2" | 20 |
