BILATERAL WITH SMOOTH TERMINAL AND END C SWIVEL NUT OUTLET
Articolo: 224
PN 16 bar
End-of-line bilateral simple manifold withsmooth terminal for connection through welding or electro-fusion coupler, swivel nut outlets. Mainly used for connection ofhousehold utilities (meters). Suitable forpotable water.
Informazioni tecniche
Scheda dati
| Materials |
|
| Certifications |
|
Informazioni tecniche
Technical notes
- Certified for use on potable water systems according to M.D. 174 of 2004.
- Subject to pressure testing in laboratory.
- GAS thread fixed female outlet according to UNI EN 228-1.
Standards
- UNI EN 12201-2
- ISO 4427-2
- UNI EN ISO 228-1

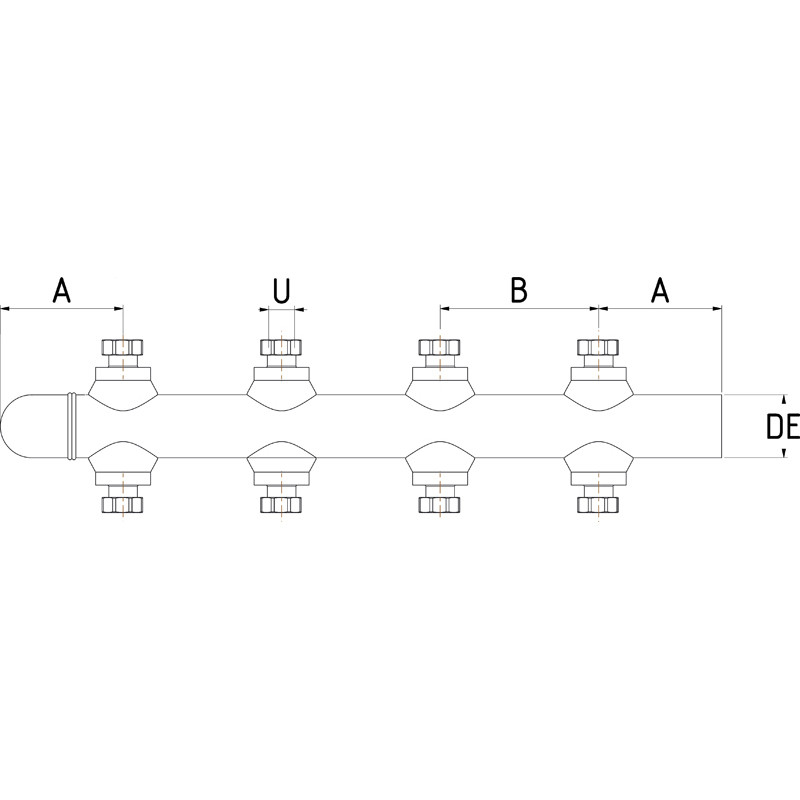

Dimensionali
| Reference | DE (mm) | DN (mm) | A (mm) | B (mm) | U (inch) | Nr. Outlets |
|---|---|---|---|---|---|---|
| 2243063020 | 63 | 50 | 125 | 120 | 1" | 2 |
| 2243063022 | 63 | 50 | 105 | 160 | 1" | 2 |
| 2243063024 | 63 | 50 | 105 | 200 | 1" | 2 |
| 2243063025 | 63 | 50 | 55 | 250 | 1" | 2 |
| 2243063040 | 63 | 50 | 125 | 120 | 1" | 4 |
| 2243063042 | 63 | 50 | 105 | 160 | 1" | 4 |
| 2243063044 | 63 | 50 | 105 | 200 | 1" | 4 |
| 2243063045 | 63 | 50 | 55 | 250 | 1" | 4 |
| 2243063060 | 63 | 50 | 125 | 120 | 1" | 6 |
| 2243063062 | 63 | 50 | 105 | 160 | 1" | 6 |
| 2243063064 | 63 | 50 | 105 | 200 | 1" | 6 |
| 2243063065 | 63 | 50 | 55 | 250 | 1" | 6 |
| 2243063080 | 63 | 50 | 125 | 120 | 1" | 8 |
| 2243063082 | 63 | 50 | 105 | 160 | 1" | 8 |
| 2243063084 | 63 | 50 | 105 | 200 | 1" | 8 |
| 2243063085 | 63 | 50 | 55 | 250 | 1" | 8 |
| 2243063100 | 63 | 50 | 125 | 120 | 1" | 10 |
| 2243063102 | 63 | 50 | 105 | 160 | 1" | 10 |
| 2243063104 | 63 | 50 | 105 | 200 | 1" | 10 |
| 2243063105 | 63 | 50 | 55 | 250 | 1" | 10 |
| 2243063120 | 63 | 50 | 125 | 120 | 1" | 12 |
| 2243063122 | 63 | 50 | 105 | 160 | 1" | 12 |
| 2243063124 | 63 | 50 | 105 | 200 | 1" | 12 |
| 2243063125 | 63 | 50 | 55 | 250 | 1" | 12 |
| 2243063140 | 63 | 50 | 125 | 120 | 1" | 14 |
| 2243063142 | 63 | 50 | 105 | 160 | 1" | 14 |
| 2243063144 | 63 | 50 | 105 | 200 | 1" | 14 |
| 2243063145 | 63 | 50 | 55 | 250 | 1" | 14 |
| 2243063160 | 63 | 50 | 125 | 120 | 1" | 16 |
| 2243063162 | 63 | 50 | 105 | 160 | 1" | 16 |
| 2243063164 | 63 | 50 | 105 | 200 | 1" | 16 |
| 2243063165 | 63 | 50 | 55 | 250 | 1" | 16 |
| 2243063180 | 63 | 50 | 125 | 120 | 1" | 18 |
| 2243063182 | 63 | 50 | 105 | 160 | 1" | 18 |
| 2243063184 | 63 | 50 | 105 | 200 | 1" | 18 |
| 2243063185 | 63 | 50 | 55 | 250 | 1" | 18 |
| 2243063200 | 63 | 50 | 125 | 120 | 1" | 20 |
| 2243063202 | 63 | 50 | 105 | 160 | 1" | 20 |
| 2243063204 | 63 | 50 | 105 | 200 | 1" | 20 |
| 2243063205 | 63 | 50 | 55 | 250 | 1" | 20 |
