90° BEND

Articolo: 054

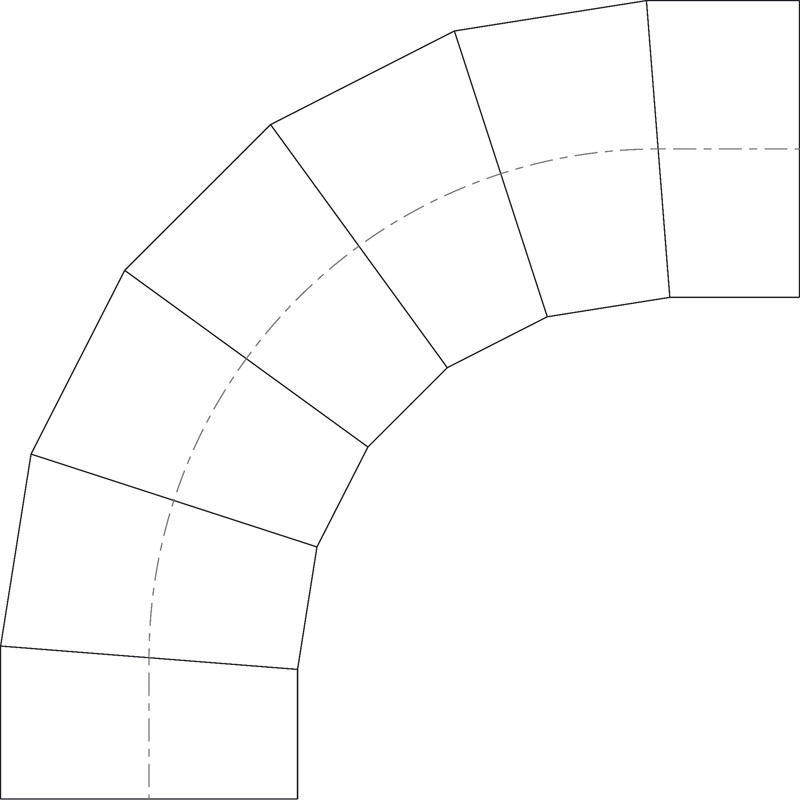

90° high density polyethylene bend, formedby assembling and welding several parts together. For use on water distribution systems or for industrial applications. Compatible with potable water.

Visualizza materiale

Informazioni tecniche

Scheda dati
Materials
  • High density polyethylene PE100 pipe.
Certifications
Informazioni tecniche
Technical notes
  • Pipeline dimensions according to UNI EN12201-2.
  • Butt welding according to UNI 10520 andUNI 10967.
  • Welding machines in compliance with UNI10565.
  • Qualified welders according to UNI 9737.
More information
  • Black pipelines with blue co-extrusionsfor water and yellow co-extrusions for gas.
Standards
  • UNI EN 1555-3
  • ISO 4437-3
  • UNI EN 12201-3
  • ISO 4427-3
  • UNI EN ISO 15494

Dimensionali

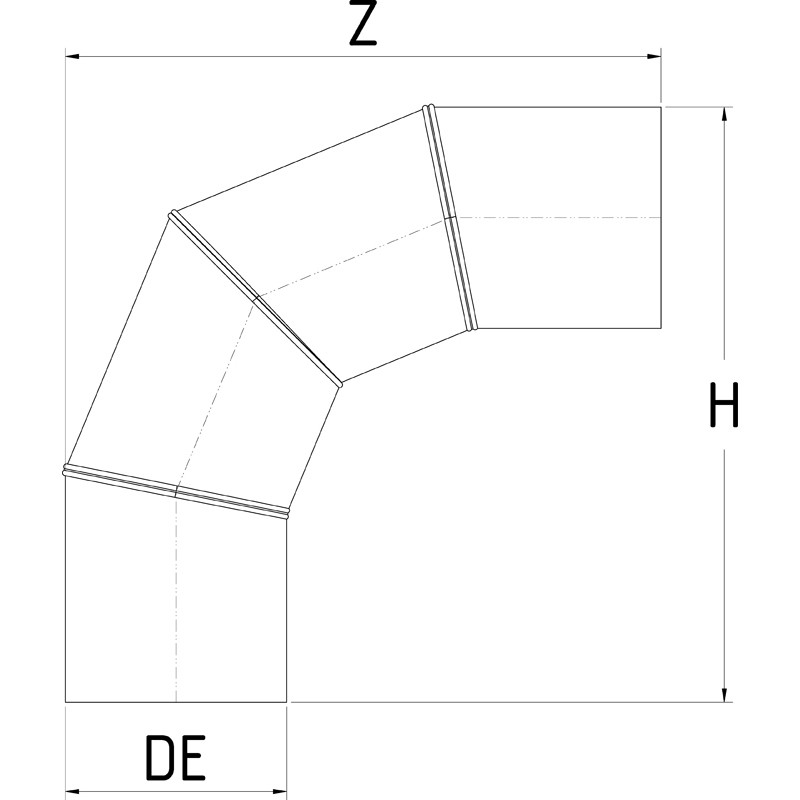

ReferenceDE (mm)PNSDRH (mm)Z (mm)Weight (kg)
0542000180180PN 6 barSDR 265205353.00
0542000200200PN 6 barSDR 266206054.30
0542000225225PN 6 barSDR 267707506.70
0542000250250PN 6 barSDR 267807758.50
0542000280280PN 6 barSDR 2681080510.90
0542000315315PN 6 barSDR 2696595016.70
0542000355355PN 6 barSDR 2699599521.70
0542000400400PN 6 barSDR 261070111030.20
0542000450450PN 6 barSDR 261195121041.90
0542000500500PN 6 barSDR 261275133056.10
0542000560560PN 6 barSDR 261400144076.30
0542000630630PN 6 barSDR 2615351560104.80
0542000710710PN 6 barSDR 2619901995173.20
0542000800800PN 6 barSDR 2620502085226.60
0542000900900PN 6 barSDR 2621252185296.50
05420010001000PN 6 barSDR 2621952285378.40
0544000125125PN 10 barSDR 174404101.70
0544000140140PN 10 barSDR 174754702.50
0544000160160PN 10 barSDR 175105153.50
0544000180180PN 10 barSDR 175205354.50
0544000200200PN 10 barSDR 176206056.40
0544000225225PN 10 barSDR 1777075010.20
0544000250250PN 10 barSDR 1778077512.80
0544000280280PN 10 barSDR 1781080516.50
0544000315315PN 10 barSDR 1796595025.10
0544000355355PN 10 barSDR 1799599532.80
0544000400400PN 10 barSDR 171070111045.70
0544000450450PN 10 barSDR 171195121063.30
0544000500500PN 10 barSDR 171275133085.00
0544000560560PN 10 barSDR 1714001440115.50
0544000630630PN 10 barSDR 1715351560158.50
0544000710710PN 10 barSDR 1719901995261.60
0544000800800PN 10 barSDR 1720502085342.70
0544000900900PN 10 barSDR 1721252185448.60
05440010001000PN 10 barSDR 1721952285573.30
0546000125125PN 16 barSDR 114404102.60
0546000140140PN 16 barSDR 114754703.60
0546000160160PN 16 barSDR 115105155.20
0546000180180PN 16 barSDR 115205356.70
0546000200200PN 16 barSDR 116206059.50
0546000225225PN 16 barSDR 1177075015.00
0546000250250PN 16 barSDR 1178077518.90
0546000280280PN 16 barSDR 1181080524.40
0546000315315PN 16 barSDR 1196595037.00
0546000355355PN 16 barSDR 1199599548.30
0546000400400PN 16 barSDR 111070111067.40
0546000450450PN 16 barSDR 111195121093.50
0546000500500PN 16 barSDR 1112751330125.30
0546000560560PN 16 barSDR 1114001440170.30
0546000630630PN 16 barSDR 11300285233.80
0548000160160PN 25 barSDR 7,45205357.30
0548000180180PN 25 barSDR 7,46206059.50
0548000200200PN 25 barSDR 7,477075013.50
0548000225225PN 25 barSDR 7,478077521.40
0548000250250PN 25 barSDR 7,481080527.00
0548000280280PN 25 barSDR 7,496595034.70
0548000315315PN 25 barSDR 7,499599552.70
0548000355355PN 25 barSDR 7,41070111068.80
0548000400400PN 25 barSDR 7,41195121096.10
0548000450450PN 25 barSDR 7,412751330133.10
