60° BEND

Articolo: 056

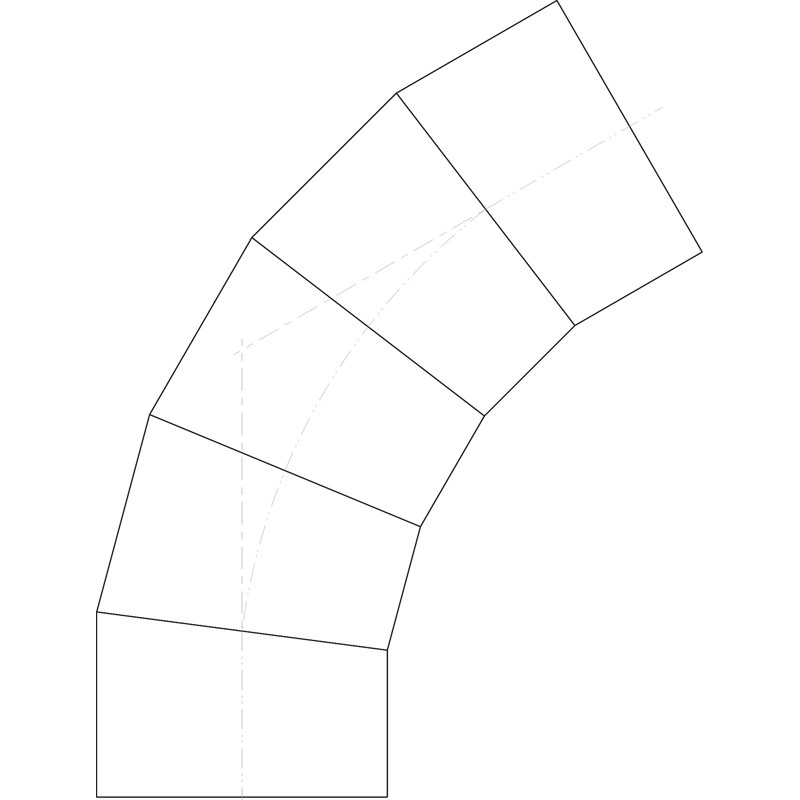

60° high density polyethylene bend, formedby assembling and welding several parts together. For use on water distribution systems or for industrial applications. Compatible with potable water.

Visualizza materiale

Informazioni tecniche

Scheda dati
Materials
  • High density polyethylene PE100 pipe.
Certifications
Informazioni tecniche
Technical notes
  • Pipeline dimensions according to UNI EN12201-2.
  • Butt welding according to UNI 10520 andUNI 10967.
  • Welding machines in compliance with UNI10565.
  • Qualified welders according to UNI 9737.
More information
  • Black pipelines with blue co-extrusionsfor water and yellow co-extrusions for gas.
Standards
  • UNI EN 1555-3
  • ISO 4437-3
  • UNI EN 12201-3
  • ISO 4427-3
  • UNI EN ISO 15494

Dimensionali

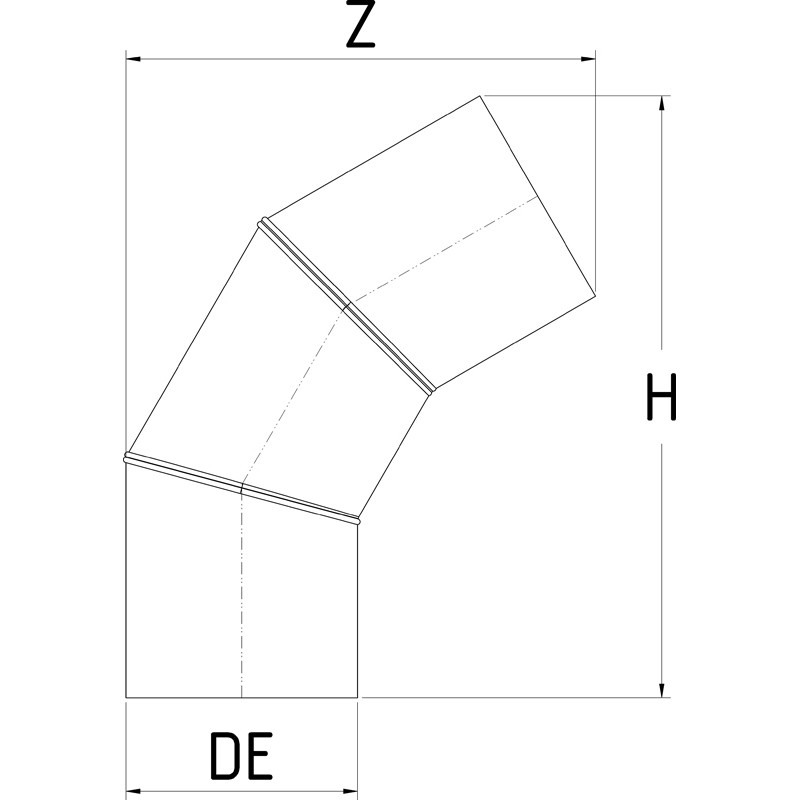

ReferenceDE (mm)PNSDRH (mm)Z (mm)Weight (kg)
0562000160160PN 6 barSDR 264953651.60
0562000180180PN 6 barSDR 265103602.10
0562000200200PN 6 barSDR 266054503.10
0562000225225PN 6 barSDR 267455404.80
0562000250250PN 6 barSDR 267655656.10
0562000280280PN 6 barSDR 267905957.70
0562000315315PN 6 barSDR 2694070011.80
0562000355355PN 6 barSDR 2697574015.20
0562000400400PN 6 barSDR 26105581020.70
0562000450450PN 6 barSDR 26117590529.20
0562000500500PN 6 barSDR 26126098038.20
0562000560560PN 6 barSDR 261390108052.70
0562000630630PN 6 barSDR 261525119573.10
0564000125125PN 10 barSDR 174203051.30
0564000140140PN 10 barSDR 174603351.70
0564000160160PN 10 barSDR 174953652.40
0564000180180PN 10 barSDR 175103603.10
0564000200200PN 10 barSDR 176054504.60
0564000225225PN 10 barSDR 177455407.30
0564000250250PN 10 barSDR 177655659.10
0564000280280PN 10 barSDR 1779059511.70
0564000315315PN 10 barSDR 1794070017.80
0564000355355PN 10 barSDR 1797574023.10
0564000400400PN 10 barSDR 17105581031.20
0564000450450PN 10 barSDR 17117590544.10
0564000500500PN 10 barSDR 17126098057.90
0564000560560PN 10 barSDR 171390108079.70
0564000630630PN 10 barSDR 1715251195110.60
0564000710710PN 10 barSDR 1779501480183.80
0564000800800PN 10 barSDR 1720251570238.60
0564000900900PN 10 barSDR 1721101670309.30
05640010001000PN 10 barSDR 1722001770391.80
0566000125125PN 16 barSDR 114203051.90
0566000140140PN 16 barSDR 114603352.60
0566000160160PN 16 barSDR 114953653.60
0566000180180PN 16 barSDR 115103604.60
0566000200200PN 16 barSDR 116054506.80
0566000225225PN 16 barSDR 1174554010.80
0566000250250PN 16 barSDR 1176556513.50
0566000280280PN 16 barSDR 1179059517.30
0566000315315PN 16 barSDR 1194070026.20
0566000355355PN 16 barSDR 1197574033.90
0566000400400PN 16 barSDR 11105581046.10
0566000450450PN 16 barSDR 11117590565.10
0566000500500PN 16 barSDR 11126098085.30
0566000560560PN 16 barSDR 1113901080117.60
0566000630630PN 16 barSDR 1115251195163.10
0568000125125PN 25 barSDR 7,44203052.70
0568000140140PN 25 barSDR 7,44603353.70
0568000160160PN 25 barSDR 7,44953655.10
0568000180180PN 25 barSDR 7,45103606.50
0568000200200PN 25 barSDR 7,46054509.70
0568000225225PN 25 barSDR 7,474554015.40
0568000250250PN 25 barSDR 7,476556519.30
0568000280280PN 25 barSDR 7,479059524.60
0568000315315PN 25 barSDR 7,494070037.30
0568000355355PN 25 barSDR 7,497574048.30
0568000400400PN 25 barSDR 7,4105581065.80
0568000450450PN 25 barSDR 7,4117590592.70
