45° TEE

Articolo: 064

45° high density polyethylene TEE, formedby assembling and welding several parts together. For use on water distribution systems or for industrial applications. Compatible with potable water.

Visualizza materiale

Informazioni tecniche

Scheda dati
Materials
  • High density polyethylene PE100 pipe.
Certifications
Informazioni tecniche
Technical notes
  • Pipeline dimensions according to UNI EN12201-2.
  • Butt welding according to UNI 10520 andUNI 10967.
  • Welding machines in compliance with UNI10565.
  • Qualified welders according to UNI 9737.
More information
  • Black pipelines with blue co-extrusionsfor water and yellow co-extrusions for gas.
Standards
  • UNI EN 1555-3
  • ISO 4437-3
  • UNI EN 12201-3
  • ISO 4427-3
  • UNI EN ISO 15494

Dimensionali

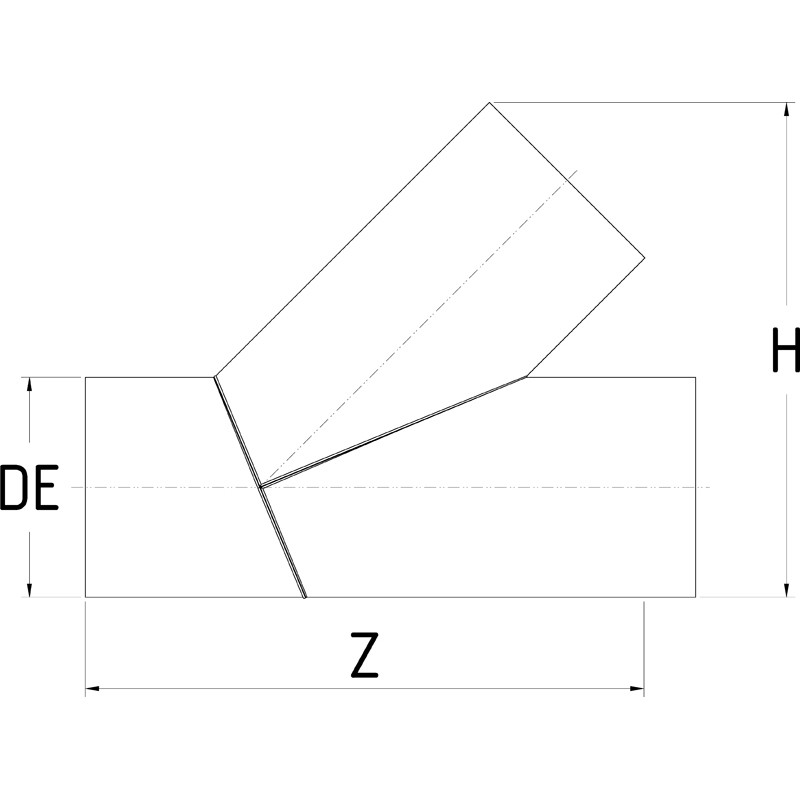

ReferenceDE (mm)PNSDRH (mm)Z (mm)Weight (kg)
0642000160160PN 6 barSDR 264155864.00
0642000180180PN 6 barSDR 265197556.50
0642000200200PN 6 barSDR 265547838.30
0642000225225PN 6 barSDR 2659686811.70
0642000250250PN 6 barSDR 2663990415.00
0642000280280PN 6 barSDR 26761109622.70
0642000315315PN 6 barSDR 26821114530.00
0642000355355PN 6 barSDR 26889120239.60
0642000400400PN 6 barSDR 261036146661.90
0642000450450PN 6 barSDR 261122153681.60
0642000500500PN 6 barSDR 2612071607104.70
064400009090PN 10 barSDR 172954871.60
0644000110110PN 10 barSDR 173295162.60
0644000125125PN 10 barSDR 173555373.40
0644000140140PN 10 barSDR 173805584.40
0644000160160PN 10 barSDR 174155866.00
0644000180180PN 10 barSDR 175197559.80
0644000200200PN 10 barSDR 1755478312.40
0644000225225PN 10 barSDR 1759686817.80
0644000250250PN 10 barSDR 1763990422.50
0644000280280PN 10 barSDR 17761109634.30
0644000315315PN 10 barSDR 17821114545.20
0644000355355PN 10 barSDR 17889120260.00
0644000400400PN 10 barSDR 171036146693.40
0644000450450PN 10 barSDR 1711221536123.40
0644000500500PN 10 barSDR 1712071607158.70
064600009090PN 16 barSDR 112954872.40
0646000110110PN 16 barSDR 113295163.70
0646000125125PN 16 barSDR 113555375.00
0646000140140PN 16 barSDR 113805586.50
0646000160160PN 16 barSDR 114155868.90
0646000180180PN 16 barSDR 1151975514.40
0646000200200PN 16 barSDR 1155478318.40
0646000225225PN 16 barSDR 1159686826.20
0646000250250PN 16 barSDR 1163990433.30
0646000280280PN 16 barSDR 11761109650.60
0646000315315PN 16 barSDR 11821114566.60
0646000355355PN 16 barSDR 11889120288.20
0646000400400PN 16 barSDR 1110361466138.00
0646000450450PN 16 barSDR 1111221536182.20
0646000500500PN 16 barSDR 1112071607233.90
064800009090PN 25 barSDR 7,42954873.40
0648000110110PN 25 barSDR 7,43295165.40
0648000125125PN 25 barSDR 7,43555377.10
0648000140140PN 25 barSDR 7,43805589.30
0648000160160PN 25 barSDR 7,441558612.60
0648000180180PN 25 barSDR 7,451975520.40
0648000200200PN 25 barSDR 7,455478326.10
0648000225225PN 25 barSDR 7,459686837.10
0648000250250PN 25 barSDR 7,463990447.50
0648000280280PN 25 barSDR 7,4761109672.10
0648000315315PN 25 barSDR 7,4821114595.00
0648000355355PN 25 barSDR 7,48891202125.70
0648000400400PN 25 barSDR 7,410361466196.60
0648000450450PN 25 barSDR 7,411221536259.30
