ONE-WAY WALL-MOUNTED KNIFE GATE VALVE
Articolo: 205
Shut-off valve. Made of high density polyethylene with stainless steel bodies. Flat version for vertical installation (wall-mounted). It is used to adjust the flowor to close/open the system completely.
Informazioni tecniche
Scheda dati
| Materials |
|
| Certifications |
|
Informazioni tecniche
Technical notes
- Rope gasket all over the internal profile.
- Equipped with holes for installation using expansion plugs.
- Fitted with comfortable handle for manual opening.
- Subject to dimensional checks and pressure testing.
- Accompanied by a certificate of conformity according to ISO/IEC 17050-1.
Standards

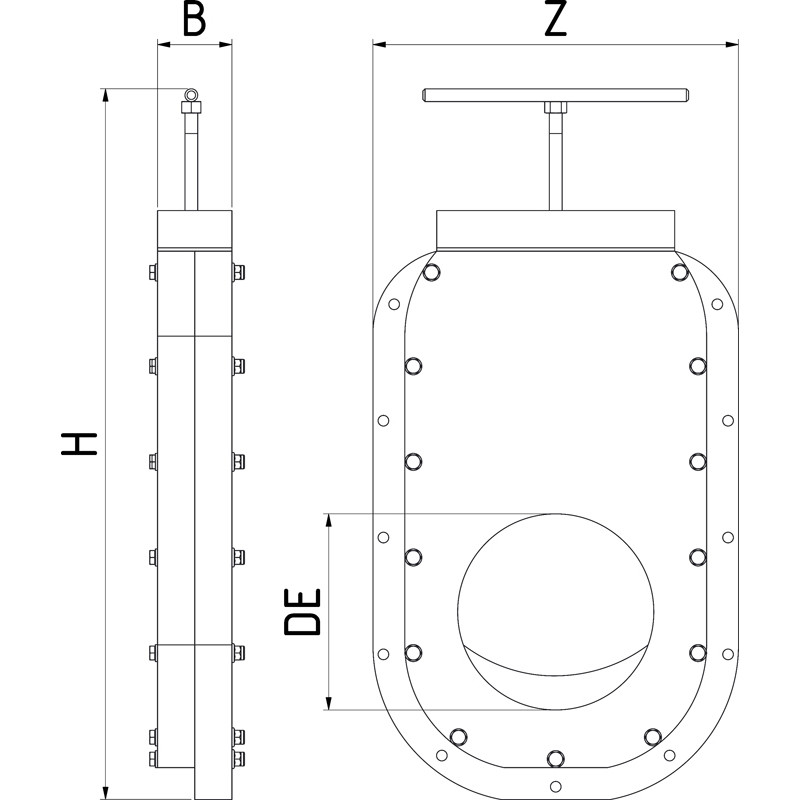

Dimensionali
| Reference | DE (mm) | PN | Z (mm) | B (mm) | C (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 2050000110 | 100 | PN 2 bar | 230 | 58 | 114 | 385/497 | 2.80 |
| 2050000125 | 100 | PN 2 bar | 230 | 58 | 114 | 385/497 | 2.90 |
| 2050000160 | 120 | PN 2 bar | 270 | 58 | 128 | 475/613 | 3.80 |
| 2050000200 | 160 | PN 1 bar | 308 | 58 | 153 | 569/732 | 5.30 |
| 2050000250 | 195 | PN 1 bar | 360 | 58 | 170 | 620/824 | 10.40 |
| 2050000315 | 254 | PN 1 bar | 420 | 58 | 202 | 727/982 | 10.90 |
