NON-RETURN CLAPET – INCLINED VALVE WITH FLANGE
NON-RETURN CLAPET – INCLINED VALVE WITH FLANGE - Image 2
NON-RETURN CLAPET – INCLINED VALVE WITH FLANGE - Image 3
Sewerage

NON-RETURN CLAPET – INCLINED VALVE WITH FLANGE

Articolo: 123
PN 0,5 bar

End-of-line non-return clapet valve on sewerage systems. Made of high density polyethylene with stainless steel bodies. Inclined version with flanged end.

Visualizza materiale

Informazioni tecniche

Scheda dati
Materials
  • Black high density polyethylene PE100 body, extruded sheets.
  • Metal components in AISI 316 stainless steel.
  • VMQ 70 Shore A gasket (red silicone) according to DIN 7863C.
Certifications
Informazioni tecniche
Technical notes
  • Diameters >DN500 with reinforced structure.
  • Fitted with stub pipe (SDR33) for mounting on pipeline.
  • Flange connections according to EN 1092PN10.
  • Class 4 according to DIN 19569-4 (loss 0.02÷0.05 l/s/m).
  • Door fitted with eyebolts for manual opening.
  • Subject to dimensional checks and pressure testing.
  • Accompanied by a certificate of conformity according to ISO/IEC 17050-1.
Standards
  • DIN 19569-4

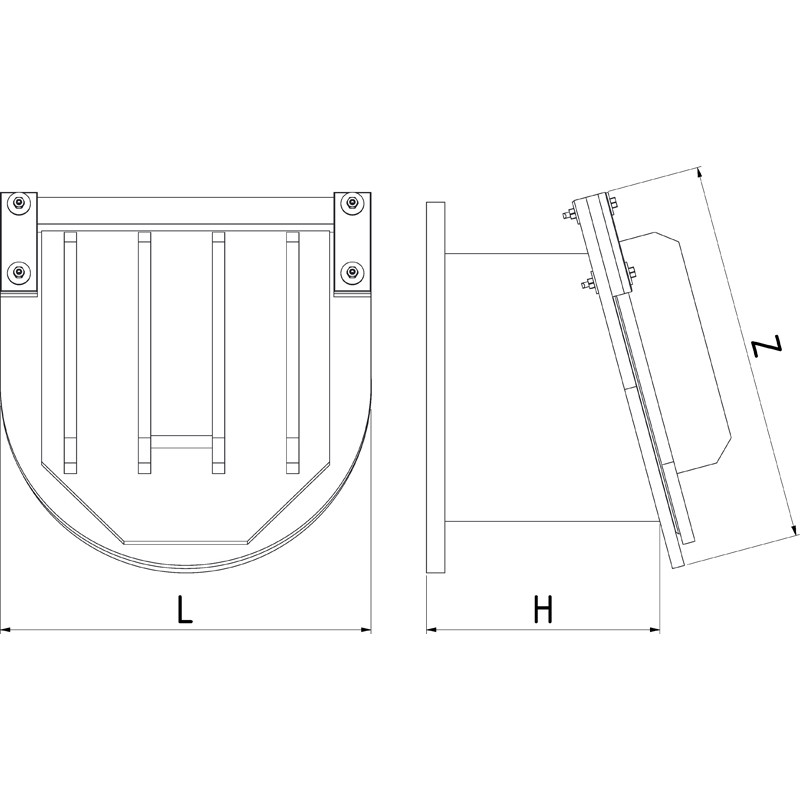

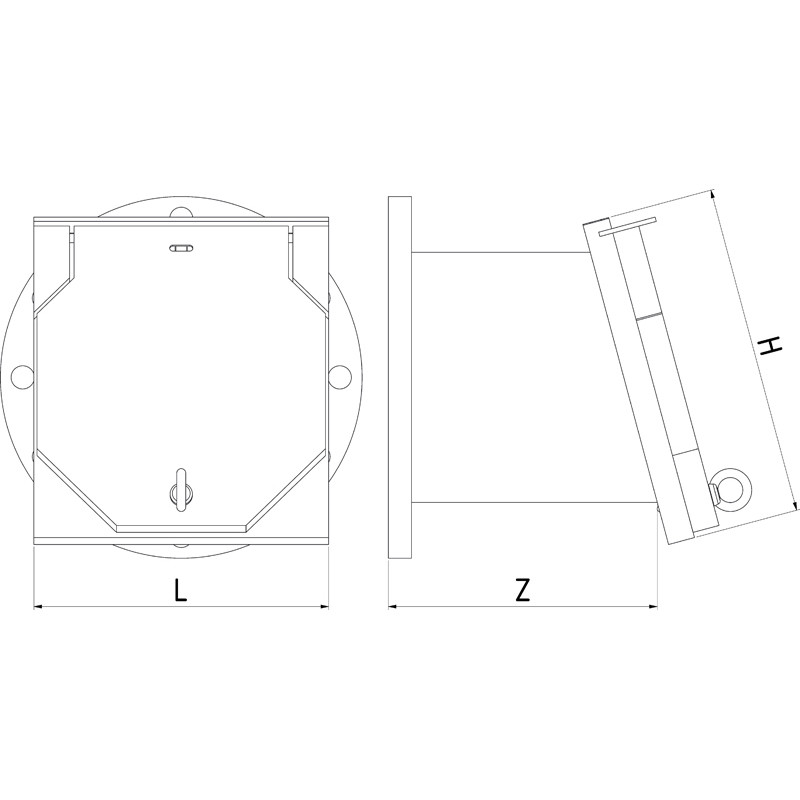

Dimensionali

ReferenceDE (mm)DN (mm)L (mm)H (mm)Z (mm)C (mm)Weight (kg)
12300001001151002002372001034.50
12300001251291252402832001285.20
12300001501661502803223001606.00
12300002002072003303833001729.50
123000025025825039544840020011.80
123000030029030048053040024018.50
123000040036940048053040024020.50
123000050046150058063050029028.50
1230000600581600690840500335110.00
1230000700667700870927500374132.00
12300008007508008701023500422156.00
12300009008459009701129600470183.00
1230001000940100010661232600515213.00
1230001100******244.00
1230001200******278.00
1230001500******354.00
