CURVED ANTIFREEZE FITTING FOR FIREPROOF BOXES
Articolo: 084
PN 16 bar
Curved transition fitting with antifreezecoating in rigid cellular polyurethane. Application on fire-fighting systems for hydrant box connection. Female threaded outlet.
Informazioni tecniche
Scheda dati
| Materials |
|
| Certifications |
Informazioni tecniche
Technical notes
- Metal/PE connection compliant with UNI 9736, with full bore passage and insulation against external infiltrations.
- Approved for use on potable water systems according to M.D. 174 of 2004.
- Subject to pressure testing according to ISO 1167 and additional MACPLAST test specification.
- Polyethylene dimensions according to UNI EN 1555-3, standard thickness SDR11.
- Metal dimensions according to ISO 3183.
- Tapered female threaded terminal in accordance with UNI ISO 228-1.
- According to UNI 10779 Fire extinguishing systems – Hydrant network.
Additional features
- Fitted with internal safety o-ring.
Standards
- UNI 10779
Dimensionali

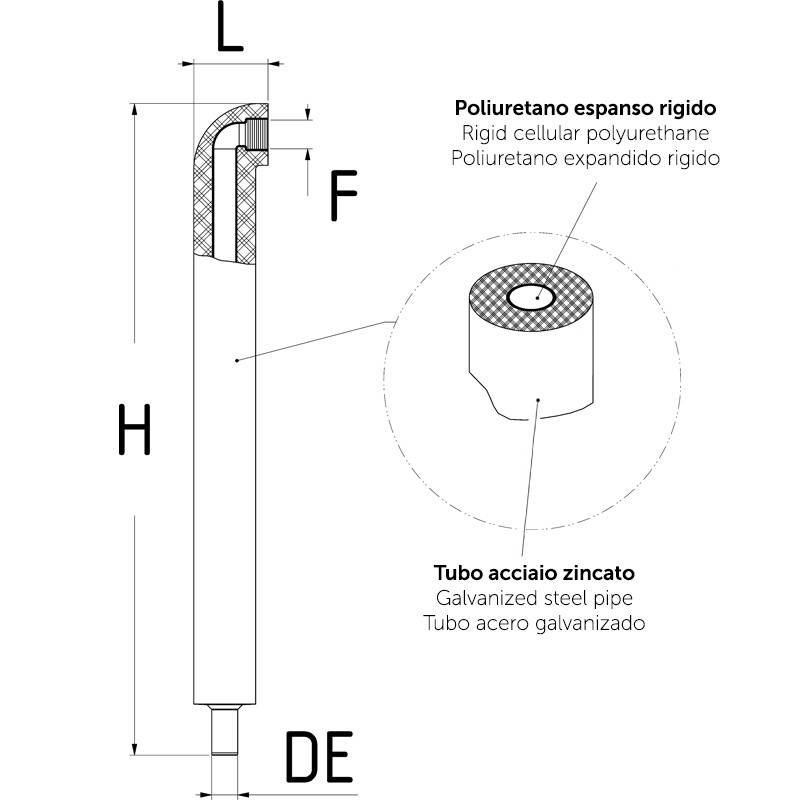

| Reference | DE (mm) | DN (inch) | DN (mm) | F (inch) | L (mm) | H (mm) | Weight |
|---|---|---|---|---|---|---|---|
| 0840050040 | 50 | 1 1/2" | 40 | 1 1/2" | 160 | 1560 | 9.00 |
| 0840063050 | 63 | 2" | 50 | 2" | 160 | 1560 | 10.00 |
